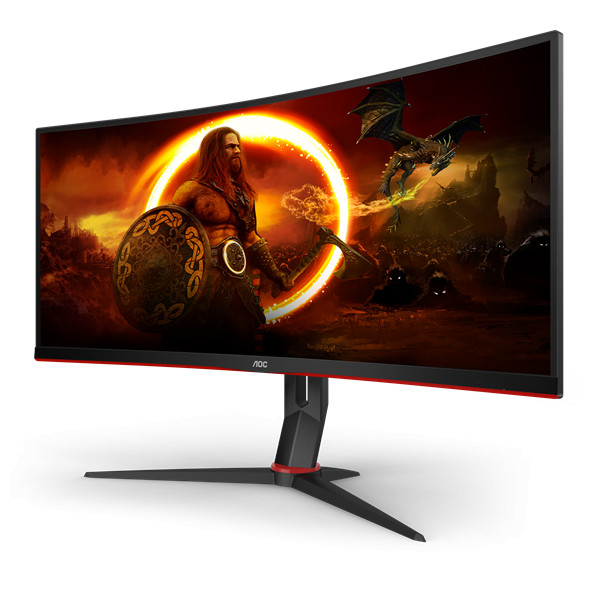

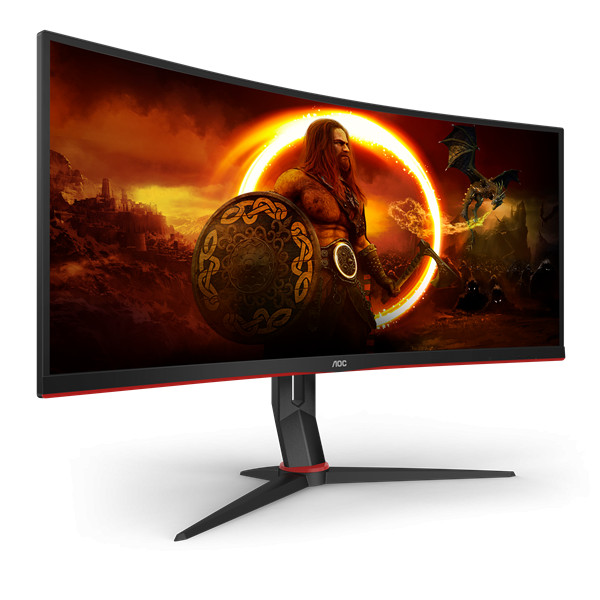

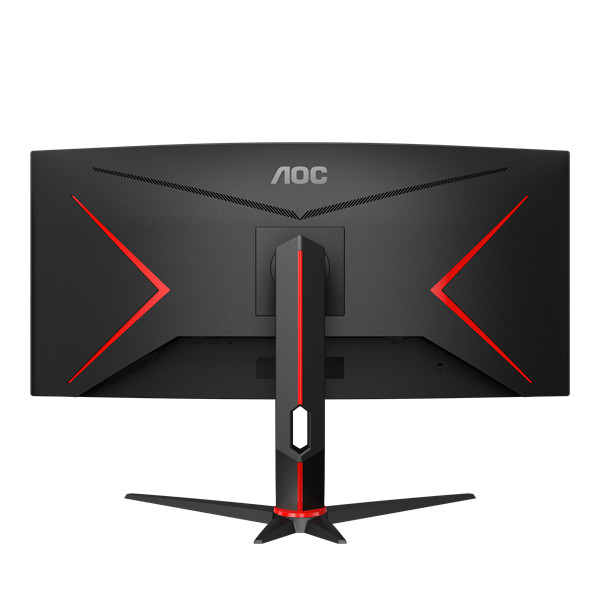

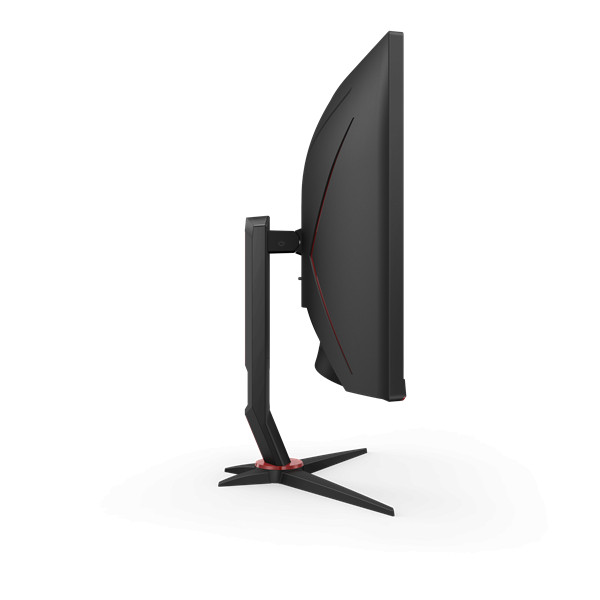

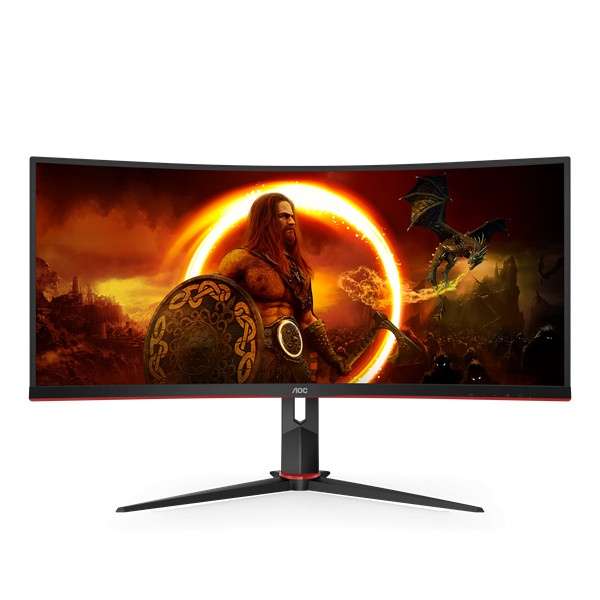

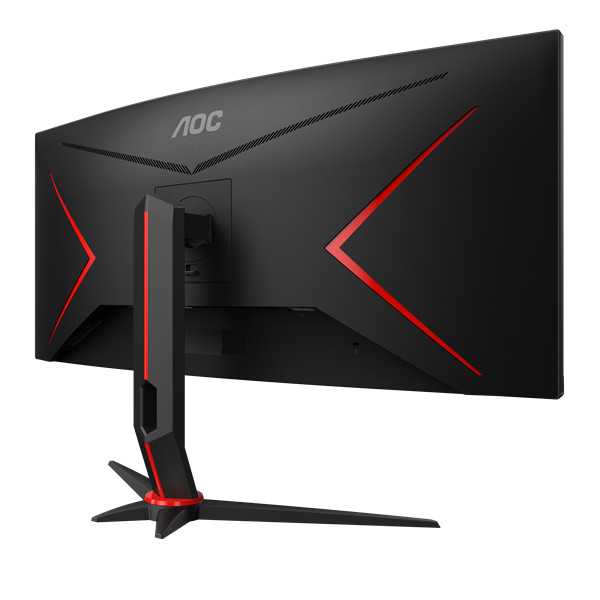

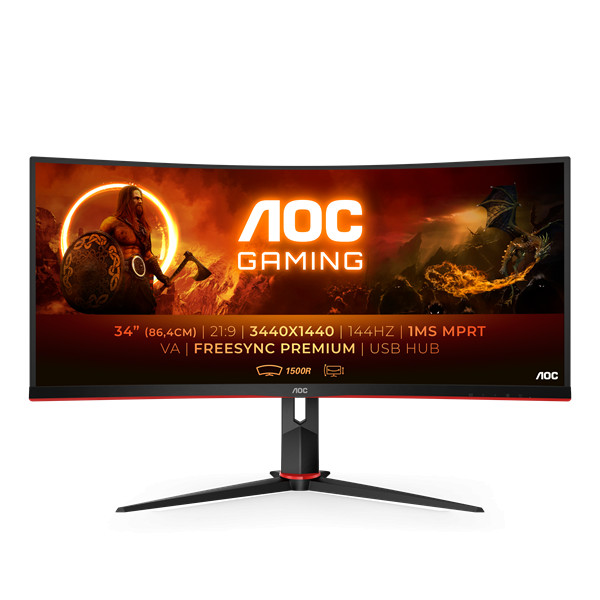

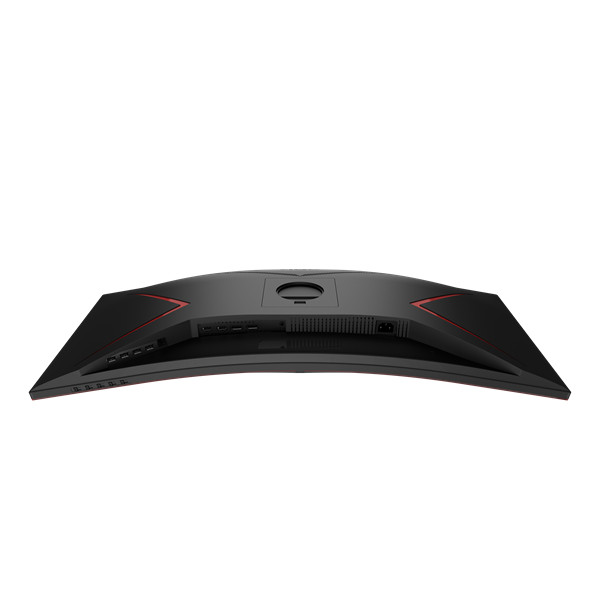

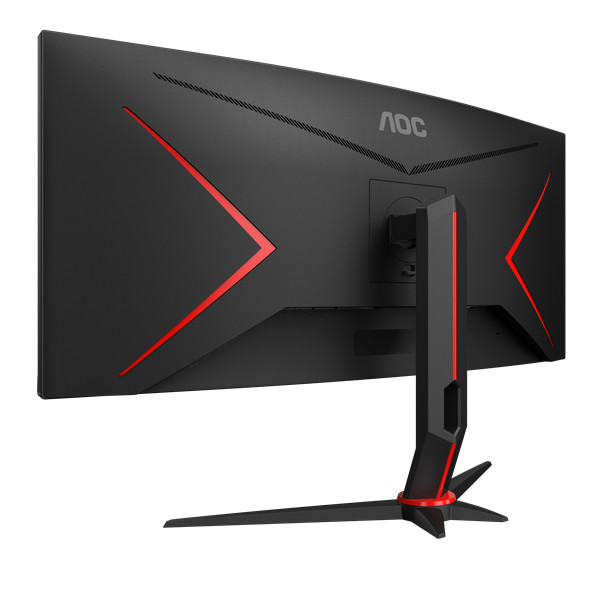

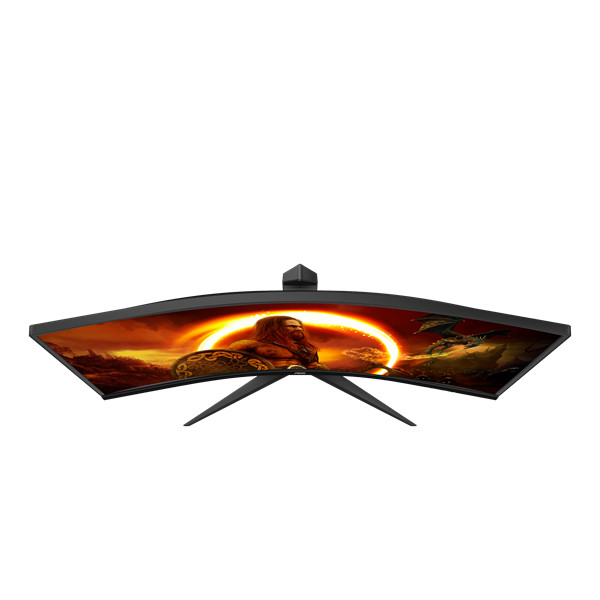

Model name
|
CU34G2X/BK
|
EAN
|
4038986117005
|
Product Line
|
AOC Gaming
|
Series
|
G2 Series
|
Channel
|
B2C
|
Classification
|
Hero
|
Section
|
Gaming
|
Gaming style
|
MMORPG, Action, RTS, Beat 'm up
|
Launch date
|
15/11/2019
|
|
|
|
|
|
|
Screen
|
|
|
|
Resolution
|
3440x1440
|
Refresh rate
|
144Hz
|
Screen size (inch)
|
34 inch
|
Screen size (cm)
|
86 cm
|
Flat / Curved
|
Curved
|
Curvature Radius
|
1500R mm
|
Backlight
|
WLED
|
Panel Type
|
VA
|
Aspect ratio
|
21:9
|
Display Colours
|
16.7 Million
|
Panel Colour in Bits
|
8
|
sRGB Coverage (%) (CIE 1931)
|
119
|
Adobe RGB Coverage (%) (CIE 1931)
|
88
|
NTSC coverage (%) (CIE 1931)
|
85 %
|
Active Screen Area (HxW)
|
797.22 (H) mm x 333.72 (V) mm
|
Pixel Pitch
|
0.2745
|
Scanning Frequency
|
VGA/DP1.2/HDMI1.4 : 30 -160KHz (H) VGA : 50 -146 Hz (V) DP1.2/HDMI1.4 :48-146Hz (V)
|
Response Time (MPRT)
|
1 ms
|
Contrast (static)
|
3000:1
|
Contrast (dynamic)
|
80M:1
|
Brightness (typical)
|
300 cd/m²
|
Viewing angle (CR10)
|
178/178 º
|
Hard Glass
|
3H
|
OSD languages
|
EN, FR , ES, PT, DE, IT, NL, SE, FI, PL ,CZ, RU, KR, CN (T), CN (S), JP
|
|
|
|
|
|
|
Exterior
|
|
|
|
Monitor colour
|
Black
|
Bezel Type
|
Frameless
|
Removable Stand
|
Yes
|
|
|
|
|
|
|
Ergonomics
|
|
|
|
Vesa Wallmount
|
100x100
|
Tilt
|
3.5° ±1.5° ~ 21.5° ±1.5°
|
Swivel
|
30° ±2°
|
Height Adjust Amount
|
130mm
|
|
|
|
|
|
|
Connectivity and Multimedia
|
|
|
|
Signal Input
|
HDMI 2.0 x 2, DisplayPort 1.4 x 2
|
USB input
|
USB 3.0 x 4
|
USB Hub
|
Yes
|
USB out ports
|
2
|
|
|
|
|
|
|
Multimedia
|
|
|
|
Audio output
|
Headphone out (3,5mm)
|
|
|
|
|
|
|
Features
|
|
|
|
Sync Technology
|
FreeSync
|
Sync Range
|
30-144
|
Flicker-free
|
Yes
|
Blue Light Technology
|
Low blue light
|
|
|
|
|
|
|
Power / Environmental
|
|
|
|
Powersupply
|
Internal
|
Powersource
|
100 - 240V 50/60Hz
|
Power Consumption On (Energystar test method)
|
67 watt
|
Power Consumption Standby
|
0.5 watt
|
Power Consumption Off
|
0.3 watt
|
EnergyClass
|
G
|
|
|
|
|
|
|
Approbations / Regulations
|
|
|
|
TUV-Bauart
|
Yes
|
EAC
|
Yes
|
|
|
|
|
|
|
Warranty
|
|
|
|
Warranty Period
|
3 Years
|
|
|
|
|
|
|
Dimensions / Weights
|
|
|
|
Product dimensions incl base
|
528.2H x 808.4W x 237.4D mm
|
Product dimensions excl base
|
367.5H x 808.4W x 102.9D mm
|
Packaging Dimensions (L x W x H)
|
903(L)*280(W)*548(H) mm
|
Product Dimensions (incl base)
|
528.2H x 808.4W x 237.4D mm
|
Gross Weight (including package)
|
12.7 Kg
|
Net Weight (excluding package)
|
8.1 Kg
|
|
|
|
|
|
|
What's in the Box?
|
|
|
|
HDMI cable
|
1,8 m
|
Displayport Cable
|
1,8 m
|
|
|
|
|
|
|
Texts and USP
|
|
|
|
Product Tagline
|
Unleash your potential
|
