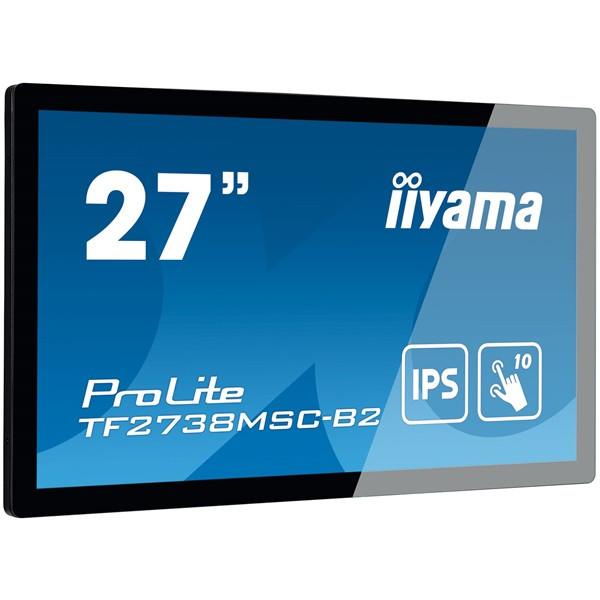

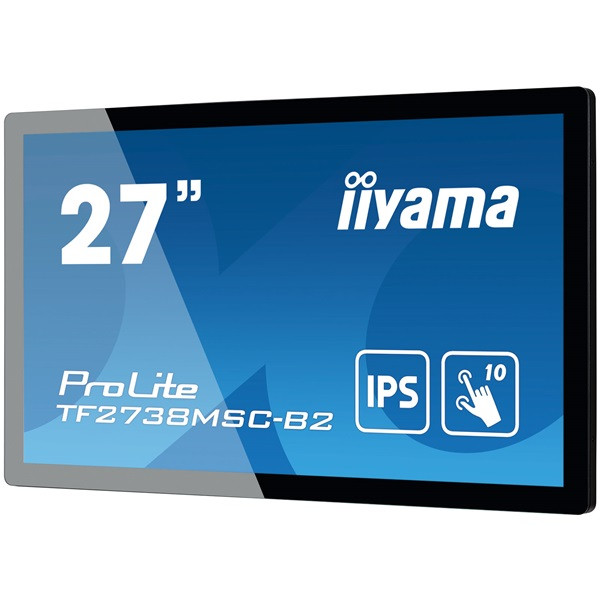

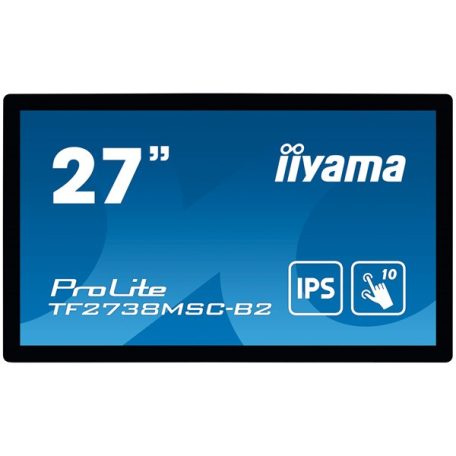

| PROLITE TF2738MSC-B2 |
|
| 27” 10pt open frame touch monitor with edge-to-edge glass |
|
| |
|
With 1920x1080 Full HD resolution and Projective Capacitive 10 point touch technology, the ProLite TF2738MSC-B2 delivers seamless and accurate touch response. Featuring IPS LED LCD Screen technology, it offers exceptional colour performance and wide viewing angles. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. In addition, the screen comes with an IPX1 rating, making it water resistant from the front. Equipped with speakers and triple digital input (DVI, HDMI and DisplayPort). The ProLite TF2738MSC-B2 is an ideal screen for kiosk integrators and a perfect solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations.
|
 |
| TECHNICAL SPECIFICATION |
|
| |
|
DISPLAY CHARACTERISTICS
|
|
| |
|
Design
|
Open Frame
|
Diagonal
|
27", 68.6cm
|
Panel
|
IPS LED
|
Native resolution
|
1920 x 1080 (2.1 megapixel Full HD)
|
Aspect ratio
|
16:9
|
Panel brightness
|
500 cd/m²
|
Brightness
|
425 cd/m² with touch
|
Light transmittance
|
85%
|
Static contrast
|
1000:1
|
Advanced contrast
|
12M:1
|
Response time (GTG)
|
5ms
|
Viewing zone
|
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
|
Colour support
|
16.7mln
|
Horizontal Sync
|
30 - 80kHz
|
Viewable area W x H
|
597.6 x 336.2mm, 23.5 x 13.2"
|
Bezel width (sides, top, bottom)
|
24.5mm, 24mm, 24mm
|
Pixel pitch
|
0.311mm
|
Bezel colour and finish
|
black, matte
|
| |
|
| |
|
| |
|
TOUCH
|
|
| |
|
Touch technology
|
projective capacitive
|
Touch points
|
10 (HID, only with supported OS)
|
Touch method
|
stylus, finger, glove (latex)
|
Touch interface
|
USB
|
Supported operating systems
|
All Iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
|
| |
|
| |
|
| |
|
INTERFACES / CONNECTORS / CONTROLS
|
|
| |
|
| Digital signal input |
DVI x1 |
| |
HDMI x1 |
.
|
DisplayPort x1
|
Audio output
|
Speakers 2 x 3W
|
HDCP
|
yes
|
| |
|
| |
|
| |
|
FEATURES
|
|
| |
|
Max. non-stop operating time
|
16/7
|
Glass thickness
|
3.6mm
|
Glass hardness
|
6H
|
60950 Ball drop test
|
yes
|
Water and dust protection
|
IP1X (front)
|
OSD key lock
|
yes
|
| |
|
| |
|
| |
|
GENERAL
|
|
| |
|
OSD languages
|
EN, DE, FR, CN, RU, JP, NL, PL
|
Control buttons
|
Menu, Scroll up/ Audio, Scroll down/ i-Style colour, Select/ Input select, Power
|
User controls
|
picture adjust (contrast, brightness, adv. contrast, ECO mode, OD) input select, audio adjust (volume, mute, audio input) colour adjust (cool, normal, warm, user colour, i-Style colour), information, manual image adjust (sharpness, video mode adjust, blue light reducer, X-res technology), setup menu (language select, OSD position, OSD time out, OSD background, opening logo, LED) memory recall
|
Blue light reducer
|
yes
|
Plug&Play
|
DDC2B
|
| |
|
| |
|
| |
|
MECHANICAL
|
|
| |
|
Orientation
|
landscape, portrait, face-up
|
Fanless design
|
yes
|
VESA mounting
|
100 x 100mm, 200 x 100mm
|
| |
|
| |
|
| |
|
ACCESSORIES INCLUDED
|
|
| |
|
Cables
|
power, USB, HDMI, mDP - DP, DP
|
Guides
|
quick start guide, safety guide
|
Cable cover
|
yes
|
| |
|
| |
|
| |
|
POWER MANAGEMENT
|
|
| |
|
Power supply unit
|
internal
|
Power supply
|
AC AC - 100V, 240/V, 50Hz
|
Power usage
|
25W typical, 1.5W stand by, 0.3W off mode
|
| |
|
| |
|
| |
|
SUSTAINABILITY
|
|
| |
|
Regulations
|
CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
|
Energy efficiency class (Regulation (EU) 2017/1369)
|
F
|
REACH SVHC
|
above 0.1%: Lead
|
| |
|
| |
|
| |
|
DIMENSIONS / WEIGHT
|
|
| |
|
Product dimensions W x H x D
|
648.5 x 386.5 x 52mm
|
Box dimensions W x H x D
|
746 x 500 x 123mm
|
Pallet volume
|
36pcs
|
Pallet dimensions W x H x D
|
747 x 1107 x 2005mm
|
Weight (without box)
|
8.3kg
|
Weight (with box)
|
9.4kg
|
EAN code
|
4948570118199
|
