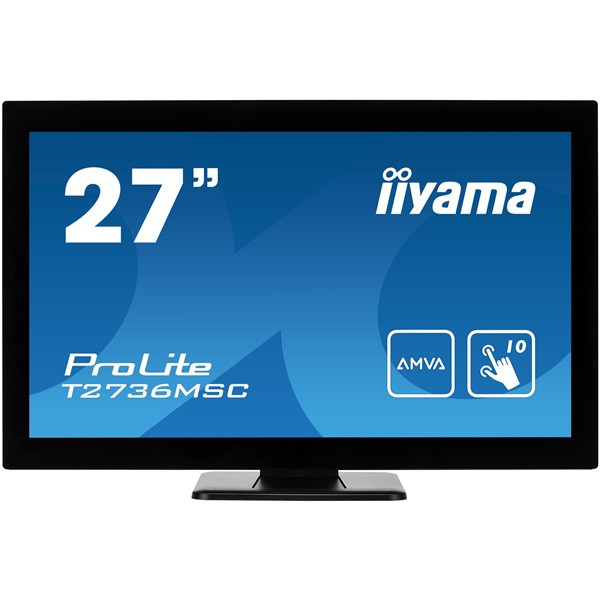

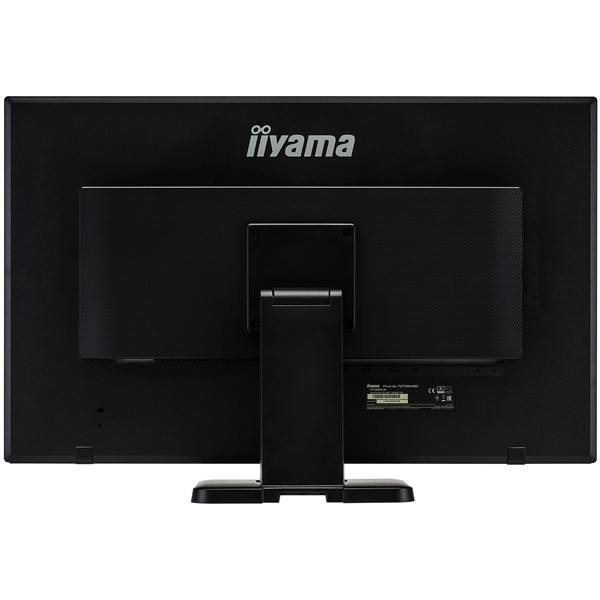

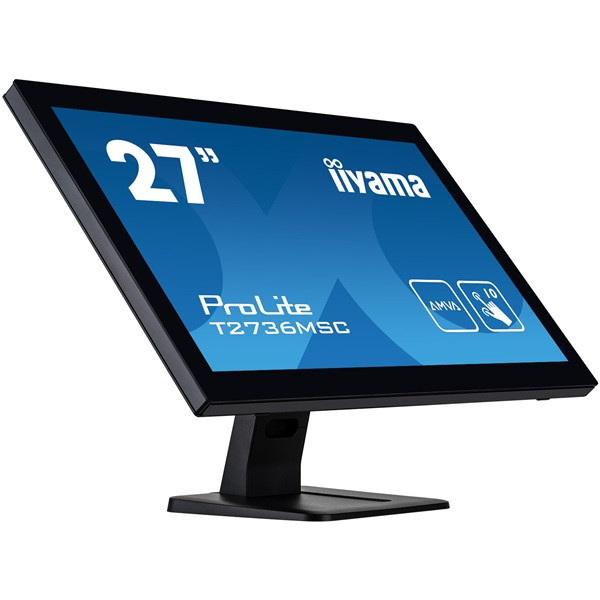

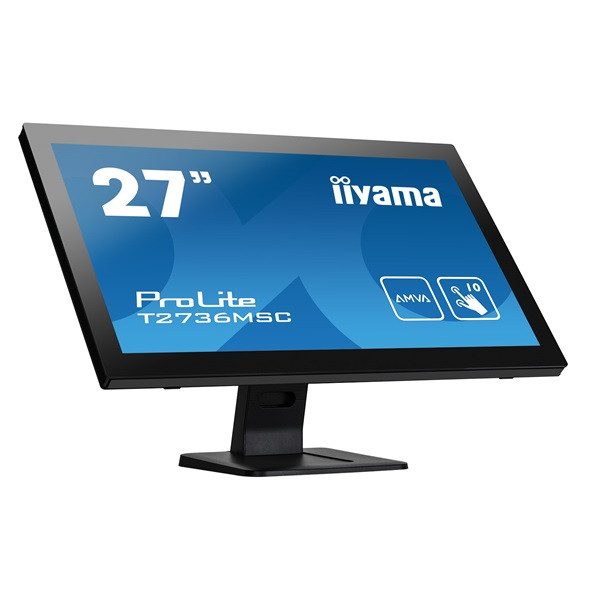

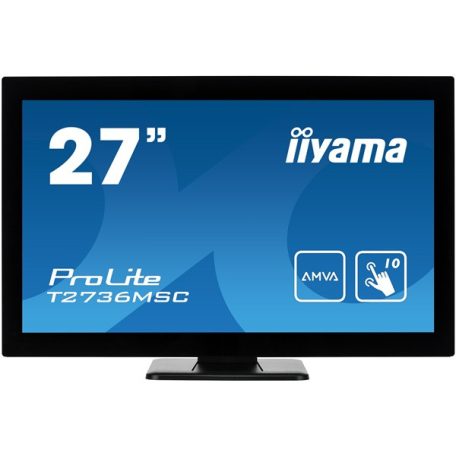

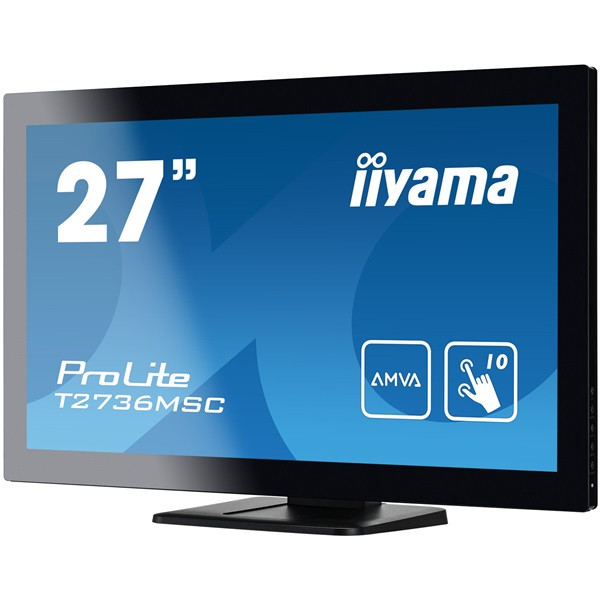

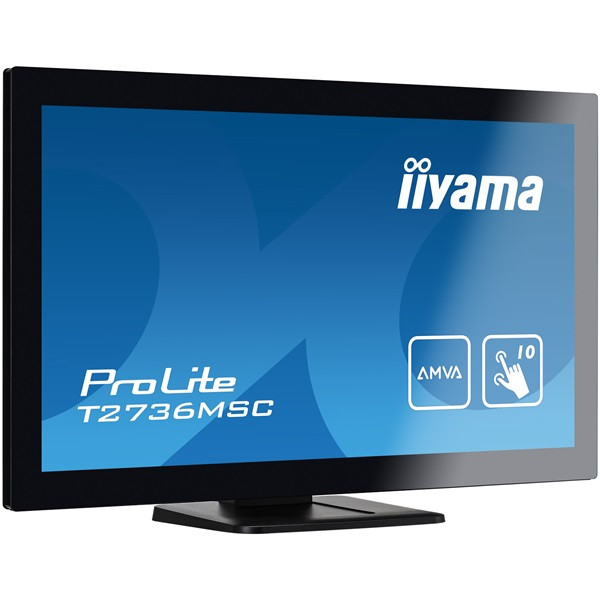

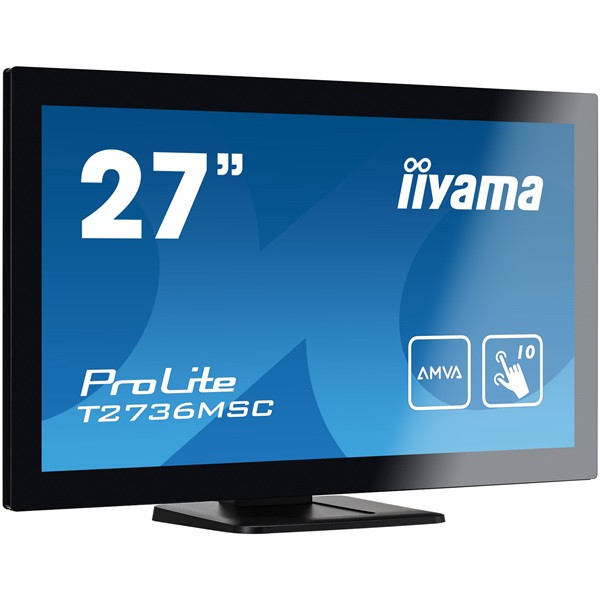

| PROLITE T2736MSC-B1 |
|
| 27" 10 point touch monitor with edge to edge glass and AMVA panel |
|
| |
|
With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2736MSC delivers seamless and accurate touch response. The AMVA panel technology guarantees high performance with excellent colour reproduction and high contrast, making it an excellent choice for a vast array of demanding interactive applications. The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience.
|
 |
| TECHNICAL SPECIFICATION |
|
| |
|
DISPLAY CHARACTERISTICS
|
|
| |
|
Design
|
Edge to edge glass
|
Diagonal
|
27", 68.6cm
|
Panel
|
AMVA LED
|
Native resolution
|
1920 x 1080 @60Hz (2.1 megapixel Full HD)
|
Aspect ratio
|
16:9
|
Panel brightness
|
300 cd/m²
|
Brightness
|
255 cd/m² with touch
|
Light transmittance
|
85%
|
Static contrast
|
3000:1
|
Advanced contrast
|
12M:1
|
Response time (GTG)
|
4ms
|
Viewing zone
|
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
|
Colour support
|
16.7mln
|
Horizontal Sync
|
30 - 80kHz
|
Viewable area W x H
|
597.6 x 336.15mm, 23.5 x 13.2"
|
Pixel pitch
|
0.311mm
|
Bezel colour and finish
|
black, matte
|
| |
|
| |
|
| |
|
TOUCH
|
|
| |
|
Touch technology
|
projective capacitive
|
Touch points
|
10 (HID, only with supported OS)
|
Touch method
|
stylus, finger, glove (latex)
|
Touch interface
|
USB
|
Supported operating systems
|
All Iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
|
Palm rejection
|
yes
|
| |
|
| |
|
| |
|
INTERFACES / CONNECTORS / CONTROLS
|
|
| |
|
Analog signal input
|
VGA x1
|
| Digital signal input |
HDMI x1 |
.
|
DisplayPort x1
|
Audio output
|
Speakers 2 x 2W
|
HDCP
|
yes
|
USB HUB
|
x4 (v.3.0)
|
| |
|
| |
|
| |
|
FEATURES
|
|
| |
|
Glass thickness
|
2.2mm
|
Glass hardness
|
7H
|
OSD key lock
|
yes
|
| |
|
| |
|
| |
|
GENERAL
|
|
| |
|
OSD languages
|
EN, DE, FR, ES, IT, PT, RU, JP, NL, PL
|
Control buttons
|
Scroll up / Audio Adjust / Blue Light Reducer, Scroll down / ECO, Auto, Menu, Power
|
User controls
|
Picture adjust (brightness, contrast, ECO, i-Style colour, ACR), geometry (pixel clock, phase, H.position, V.position, aspect), colour settings (gamma, colour temp), OSD (H.position, V. position, OSD time, language), extra (reset, signal select, audio input, opening logo, LED, OD, information, volume, auto adjust)
|
Convenience
|
Kensington-lock™ prepared
|
Blue light reducer
|
yes
|
Plug&Play
|
DDC2B
|
| |
|
| |
|
| |
|
MECHANICAL
|
|
| |
|

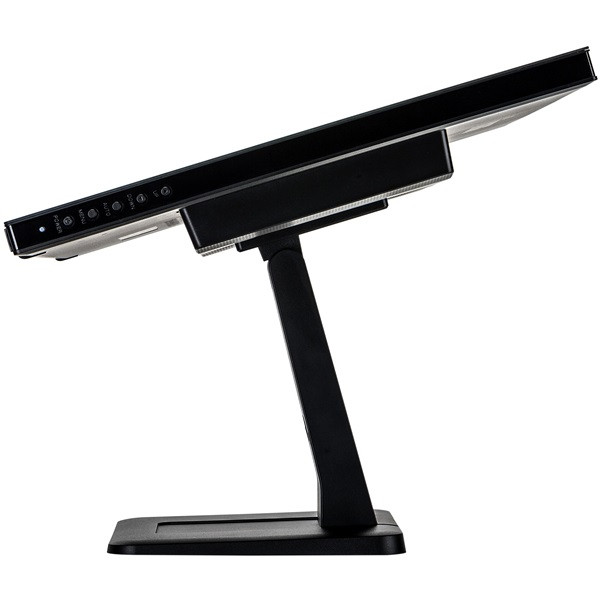

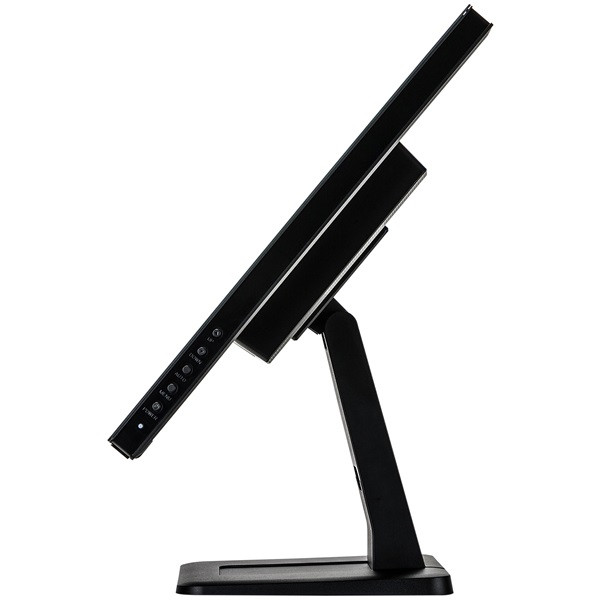

Tilt angle
|
73° up; 3° down
|
VESA mounting
|
100 x 100mm
|
| |
|
| |
|
| |
|
ACCESSORIES INCLUDED
|
|
| |
|
Cables
|
power (1.8m), VGA (1.8m), USB (1.8m), HDMI (1.8m)
|
Guides
|
quick start guide, safety guide
|
| |
|
| |
|
| |
|
POWER MANAGEMENT
|
|
| |
|
Power supply unit
|
internal
|
Power supply
|
AC 100 - 240V, 50/60Hz
|
Power usage
|
28W typical, 0.5W stand by, 0.5W off mode
|
| |
|
| |
|
| |
|
SUSTAINABILITY
|
|
| |
|
Regulations
|
CE, TÜV-Bauart, RoHS support, ErP, WEEE, CU, REACH
|
Energy efficiency class (Regulation (EU) 2017/1369)
|
F
|
REACH SVHC
|
above 0.1%: Lead
|
| |
|
| |
|
| |
|
DIMENSIONS / WEIGHT
|
|
| |
|
Product dimensions W x H x D
|
659.5 x 444 x 220.5mm
|
Weight (without box)
|
7.4kg
|
EAN code
|
4948570116423
|
| |
|
| |
|
| |
|
RELATED INFORMATION
|
|
| |
|
Product series
|
ProLite T2236MSC-B2, ProLite T2336MSC-B2, ProLite T2336MSC-B2AG, ProLite T2236MSC-B2AG
|
