Design
|
Edge to edge glass, Open Frame
|
Diagonal
|
21,5", 54.5cm
|
Panel
|
IPS
|
Native resolution
|
1920 x 1080 (2.1 megapixel Full HD)
|
Aspect ratio
|
16:9
|
Panel brightness
|
600 cd/m²
|
Brightness
|
525 cd/m² with touch
|
Light transmittance
|
87%
|
Static contrast
|
1000:1
|
Response time (GTG)
|
5ms
|
Viewing zone
|
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
|
Colour support
|
16.7mln
|
Horizontal Sync
|
30 - 83kHz
|
Viewable area W x H
|
479 x 260mm, 20.2 x 11.8"
|
Bezel width (sides, top, bottom)
|
17mm, 19.8mm, 19.8mm
|
Pixel pitch
|
0.249mm
|
Bezel colour and finish
|
black, matte
|
TOUCH
Touch technology
|
bonded PCAP
|
Touch points
|
10 (HID, only with supported OS)
|
Touch method
|
stylus, finger, glove
|
Touch interface
|
USB
|
Supported operating systems
|
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
|

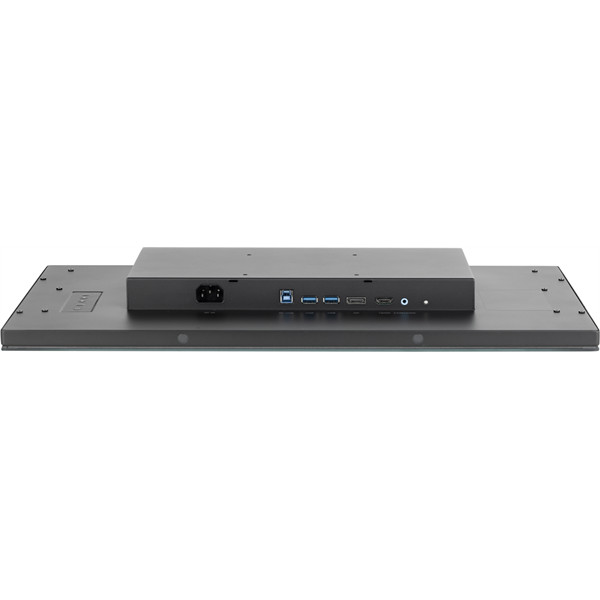

INTERFACES / CONNECTORS / CONTROLS
Digital signal input
|
HDMI x1
DisplayPort x1
|
Audio output
|
Speakers 2 x 2W
|
HDCP
|
yes
|
USB HUB
|
x2 (USB3.2 Gen 1 (5Gbps, 5V, 900mA))
|
FEATURES
Extra
|
Optical bonding PCAP, metal housing, anti fingerprint coating, water proof touch function
|
Glass thickness
|
3.6mm
|
Glass hardness
|
7H
|
60950 Ball drop test
|
yes
|
Water and dust protection
|
IP1X (front)
|
Housing (bezel)
|
metal
|
OSD key lock
|
yes
|
GENERAL
OSD languages
|
EN, DE, FR, CN, RU, JP, NL, PL
|
Control buttons
|
Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power
|
User controls
|
Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch)
|
Blue light reducer
|
