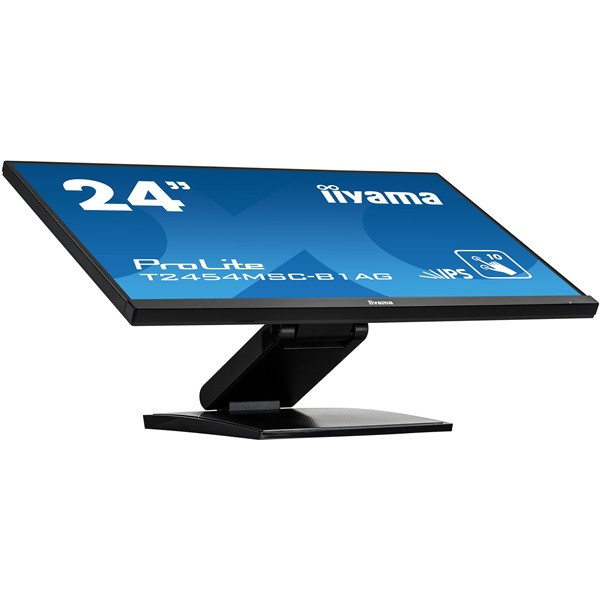

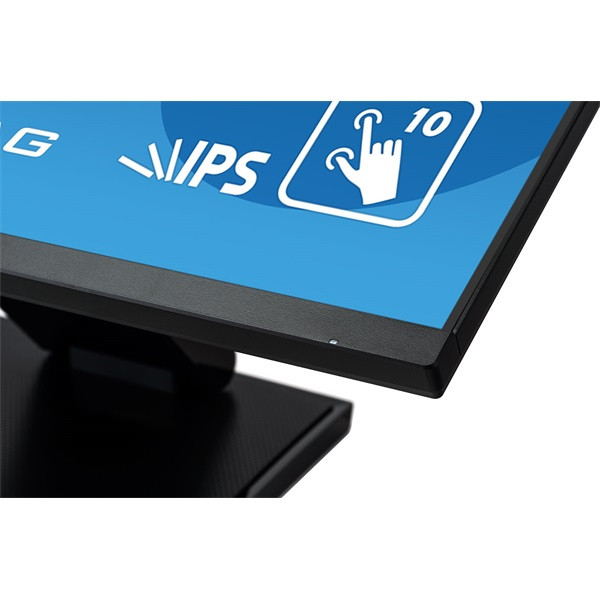

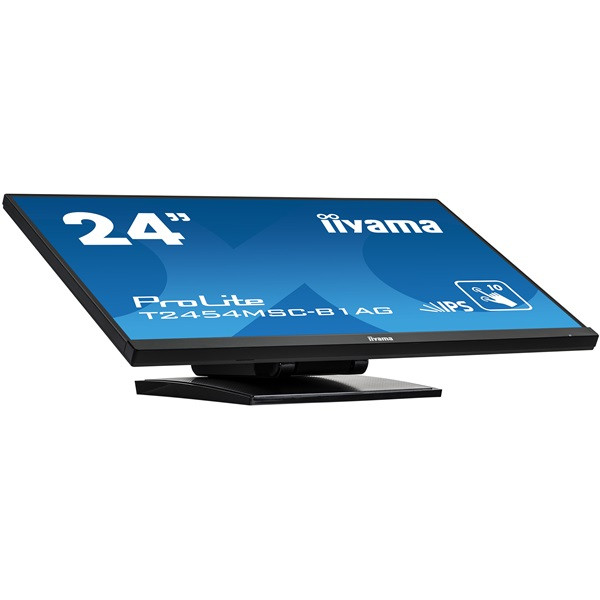

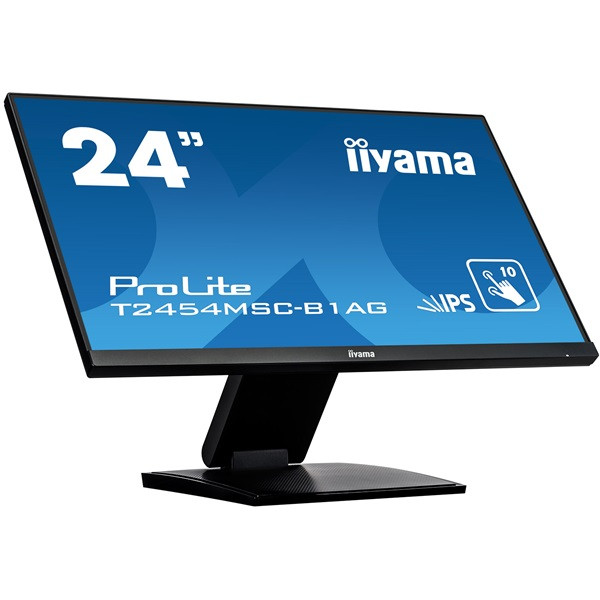

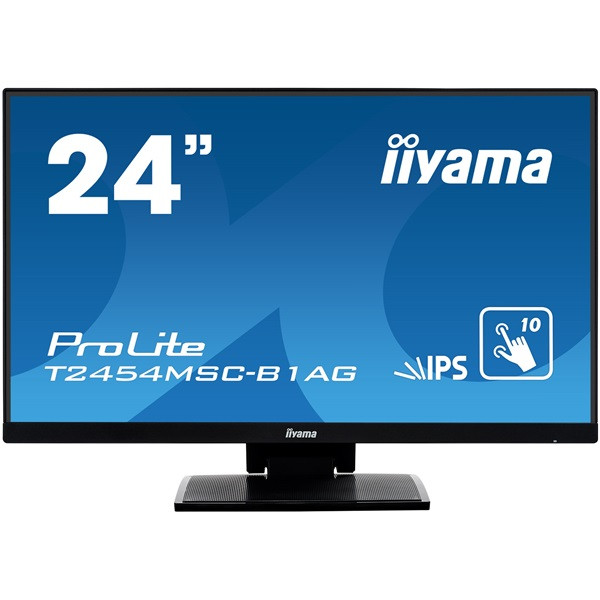

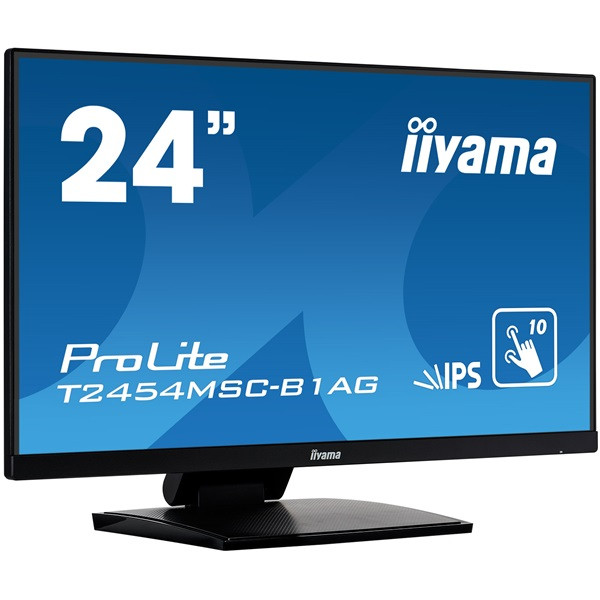

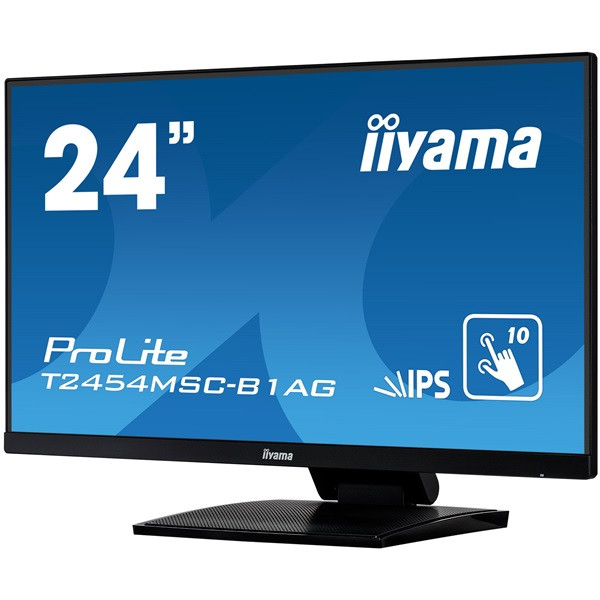

| PROLITE T2454MSC-B1AG |
|
| 24” P-CAP 10pt touch screen featuring IPS panel technology and Anti Glare coating |
| |
|

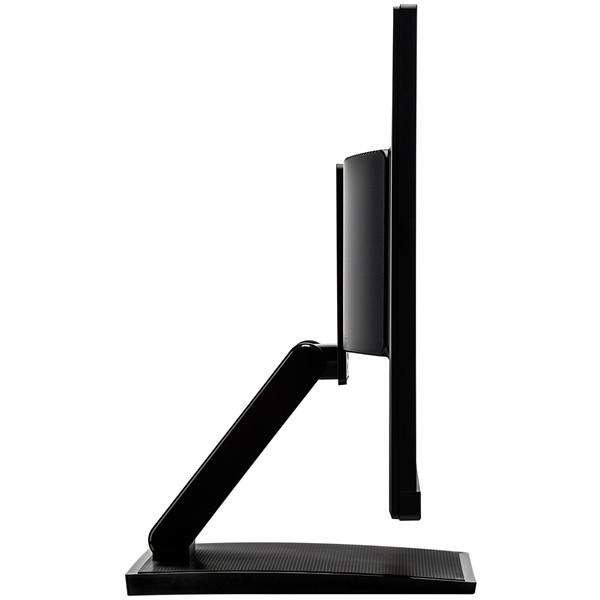

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2454MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2454MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
|
 |
| TECHNICAL SPECIFICATION |
|
| |
|
DISPLAY CHARACTERISTICS
|
|
| |
|
Design
|
Ultra thin bezel
|
Diagonal
|
23.8", 60.5cm
|
Panel
|
IPS LED, AG surface finish
|
Native resolution
|
1920 x 1080 @60Hz (2.1 megapixel Full HD)
|
Aspect ratio
|
16:9
|
Panel brightness
|
250 cd/m²
|
Static contrast
|
1000:1
|
Advanced contrast
|
5M:1
|
Response time (GTG)
|
4ms
|
Viewing zone
|
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
|
Colour support
|
16.7mln 8bit
|
Horizontal Sync
|
30 - 80kHz
|
Viewable area W x H
|
527.04 x 296.46mm, 20.7 x 11.7"
|
Pixel pitch
|
0.274mm
|
Bezel colour and finish
|
black, matte
|
| |
|
| |
|
| |
|
TOUCH
|
|
| |
|
Touch technology
|
projective capacitive
|
Touch points
|
10 (HID, only with supported OS)
|
Touch method
|
stylus, finger, glove (latex)
|
Touch interface
|
USB
|
Supported operating systems
|
All Iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
|
Palm rejection
|
yes
|
| |
|
| |
|
| |
|
INTERFACES / CONNECTORS / CONTROLS
|
|
| |
|
Analog signal input
|
VGA x1
|
Digital signal input
|
HDMI x1
|
Audio output
|
Speakers 2 x 2W
|
HDCP
|
yes
|
USB HUB
|
x2 (v.3.0)
|
| |
|
| |
|
| |
|
FEATURES
|
|
| |
|
OSD key lock
|
yes
|
| |
|
| |
|
| |
|
GENERAL
|
|
| |
|
OSD languages
|
EN, DE, FR, ES, IT, PT, RU, JP, NL, PL
|
Control buttons
|
Auto, + Up, - Down, Menu, Power
|
User controls
|
Picture adjust (brightness, contrast, Eco, i-Style Color, adv. contrast), Geometry (pixel clock, phase, horizontal position, vertical position, aspect), Color settings (gamma, color temp), OSD (OSD horizontal position, OSD vertical position, OSD time, language, auto power off, touch wake up), Extra (reset, signal select, audio input, opening logo, LED, Overdrive, Information, volume, auto adjust)
|
Convenience
|
Kensington-lock™ prepared
|
Blue light reducer
|
yes
|
Plug&Play
|
DDC2B
|
| |
|
| |
|
| |
|
MECHANICAL
|
|
| |
|
Height adjustment
|
268mm
|
Tilt angle
|
5° up; 90° down
|
VESA mounting
|
100 x 100mm
|
MTBF
|
30000 hours (excluding backlight)
|
| |
|
| |
|
| |
|
ACCESSORIES INCLUDED
|
|
| |
|
Cables
|
power (1.8m), USB (1.8m), HDMI (1.8m)
|
Guides
|
quick start guide, safety guide
|
| |
|
| |
|
| |
|
POWER MANAGEMENT
|
|
| |
|
Power supply unit
|
internal
|
Power supply
|
AC 100 - 240V, 50/60Hz
|
Power usage
|
23.7W typical, 0.46W stand by, 0.29W off mode
|
| |
|
| |
|
| |
|
SUSTAINABILITY
|
|
| |
|
Regulations
|
CB, CE, TÜV-Bauart, EAC, VCCI-B, RoHS support, ErP, WEEE, EPEAT, REACH
|
Energy efficiency class (Regulation (EU) 2017/1369)
|
F
|
REACH SVHC
|
above 0.1%: Lead
|
| |
|
| |
|
| |
|
DIMENSIONS / WEIGHT
|
|
| |
|
Product dimensions W x H x D
|
540.5 x 388 x 128mm
|
Weight (without box)
|
5.5kg
|
EAN code
|
4948570116416
|
| |
|
| |
|
| |
|
