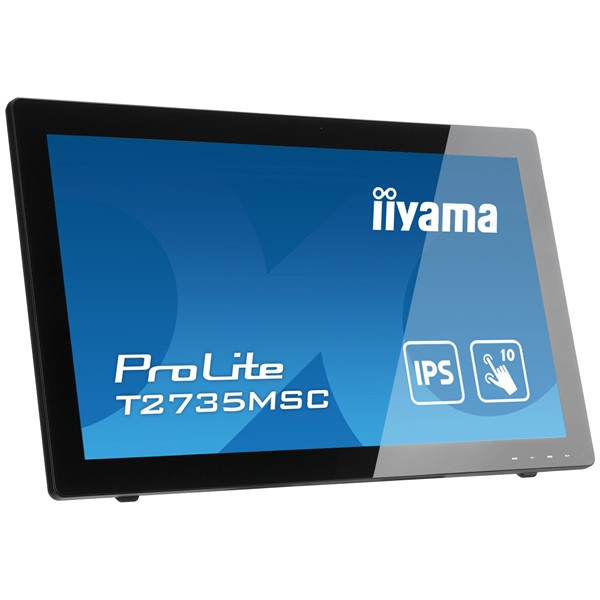

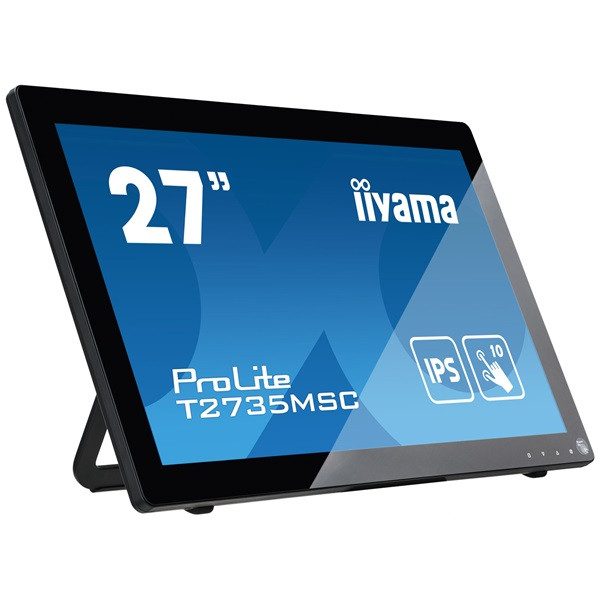

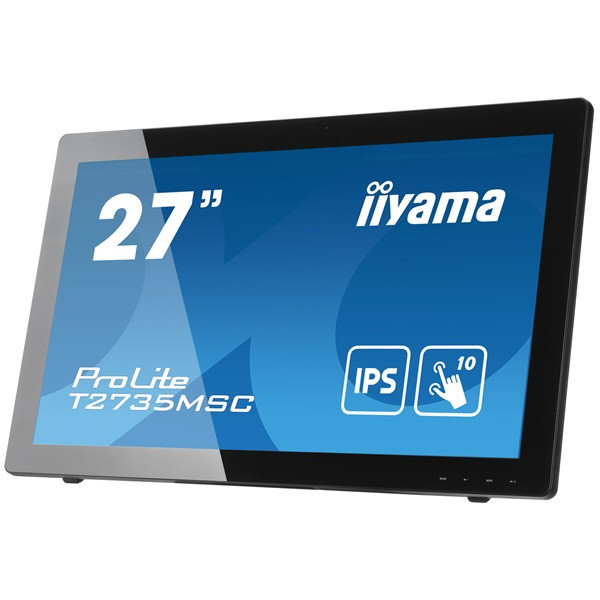

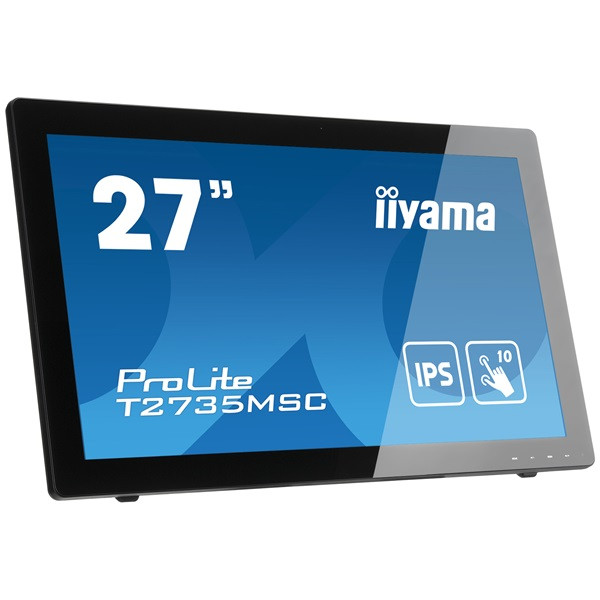

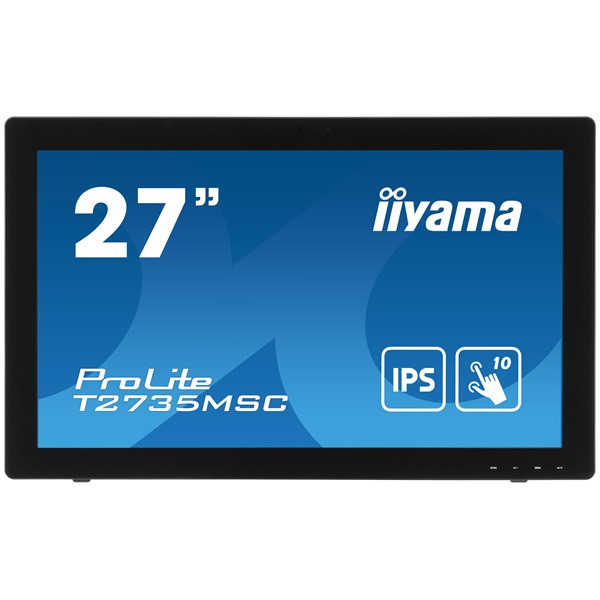

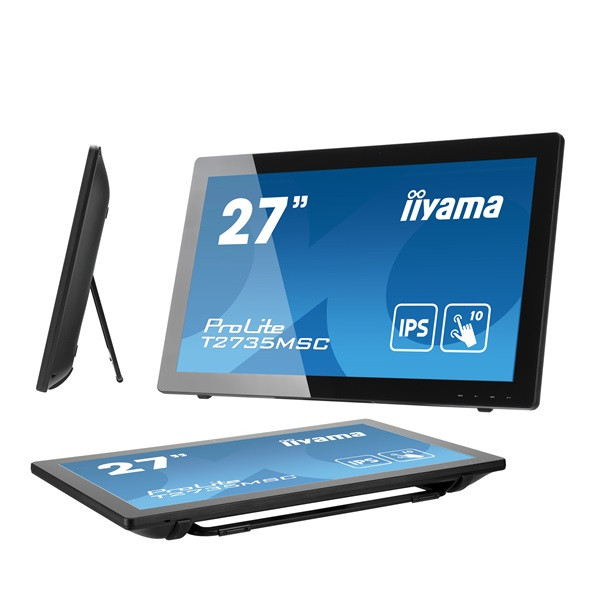

| PROLITE T2735MSC-B3 |
|
| 27" 10 point multi-touch monitor with Edge to Edge glass and webcam |
|
| |
|

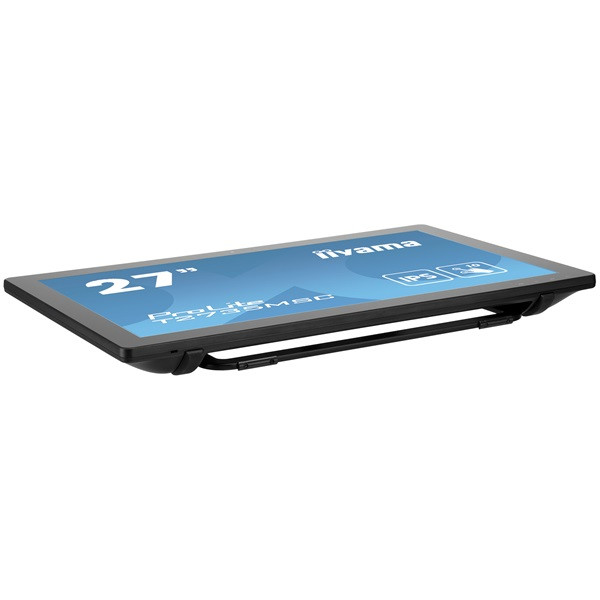

With 1920x1080 Full HD resolution and Projective Capacitive 10 point touch technology, the ProLite T2735MSC delivers seamless and accurate touch response. Featuring IPS Panel technology, it offers exceptional colour performance and wide viewing angles, making it an excellent choice for a vast array of demanding interactive applications. Users can benefit from its hinged stand allowing the monitor to lay down completely flat for use as a giant tablet. The T2735MSC comes equipped with several video inputs and a USB 3.0 HUB as well as stereo speakers delivering good quality sound. An ideal screen for Interactive Digital Signage, InStore Retail, Gaming and Interactive Presentations purposes.
|
 |
| TECHNICAL SPECIFICATION |
|
| |
|
DISPLAY CHARACTERISTICS
|
|
| |
|
Design
|
Edge to edge glass
|
Diagonal
|
27", 68.6cm
|
Panel
|
IPS LED
|
Native resolution
|
1920 x 1080 (2.1 megapixel Full HD)
|
Aspect ratio
|
16:9
|
Panel brightness
|
300 cd/m²
|
Brightness
|
255 cd/m² with touch
|
Light transmittance
|
85%
|
Static contrast
|
1 000:1
|
Advanced contrast
|
12M:1
|
Response time (GTG)
|
5ms
|
Viewing zone
|
horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
|
Colour support
|
16.7mln
|
Horizontal Sync
|
24 - 80kHz
|
Viewable area W x H
|
597.9 x 336.3mm, 23.5 x 13.2"
|
Pixel pitch
|
0.311mm
|
Bezel colour and finish
|
black, matte
|
| |
|
| |
|
| |
|
TOUCH
|
|
| |
|
Touch technology
|
projective capacitive
|
Touch points
|
10 (HID, only with supported OS)
|
Touch method
|
finger, glove (latex), capacitive stylus
|
Touch interface
|
USB
|
Supported operating systems
|
All Iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
|
| |
|
| |
|
| |
|
INTERFACES / CONNECTORS / CONTROLS
|
|
| |
|
Analog signal input
|
VGA x1
|
| Digital signal input |
HDMI x1 |
.
|
DisplayPort x1
|
| Audio output |
Mini jack x1 |
.
|
Speakers 2 x 3W
|
USB HUB
|
x2 (v.3.0)
|
| |
|
| |
|
| |
|
FEATURES
|
|
| |
|
Extra
|
integrated webcam and microphone
|
OSD key lock
|
yes
|
| |
|
| |
|
| |
|
GENERAL
|
|
| |
|
OSD languages
|
EN, DE, FR, IT, CN, RU, JP, CZ, NL, PL
|
Control buttons
|
Power, Select/ Input select, Scroll up/ Audio Adjust, Scroll down/ i-Style Colour, Menu
|
User controls
|
auto image adjust, picture adjust (contrast, brightness, ACR, ECO, OD), input select, audio adjust (volume, mute, audio input), colour adjust (cool, normal, warm, user colour, i-Style colour), information, manual image adjust (H./V. position, clock, phase, sharpness, video mode adjust, blue light reducer, X-Res Technology), setup menu (language select, OSD position, OSD time out, OSD background, opening logo, LED), reset
|
Convenience
|
Kensington-lock™ prepared
|
Blue light reducer
|
yes
|
Plug&Play
|
DDC2B
|
| |
|
| |
|
| |
|
MECHANICAL
|
|
| |
|
Tilt angle
|
15° up; 70° down
|
VESA mounting
|
100 x 100mm
|
| |
|
| |
|
| |
|
ACCESSORIES INCLUDED
|
|
| |
|
Cables
|
power, USB, HDMI, DP
|
Guides
|
quick start guide, safety guide
|
| |
|
| |
|
| |
|
POWER MANAGEMENT
|
|
| |
|
Power supply unit
|
internal
|
Power supply
|
AC 100 - 240V, 50/60Hz
|
Power usage
|
18W typical, 1.5W stand by, 0.3W off mode
|
| |
|
| |
|
| |
|
SUSTAINABILITY
|
|
| |
|
Regulations
|
CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA
|
Energy efficiency class (Regulation (EU) 2017/1369)
|
E
|
REACH SVHC
|
above 0.1%: Lead
|
| |
|
| |
|
| |
|
DIMENSIONS / WEIGHT
|
|
| |
|
Product dimensions W x H x D
|
672.5 x 422.5 x 52mm
|
Box dimensions W x H x D
|
739 x 510 x 127mm
|
Weight (without box)
|
9.1kg
|
Weight (with box)
|
10.5kg
|
EAN code
|
4948570118182
|
