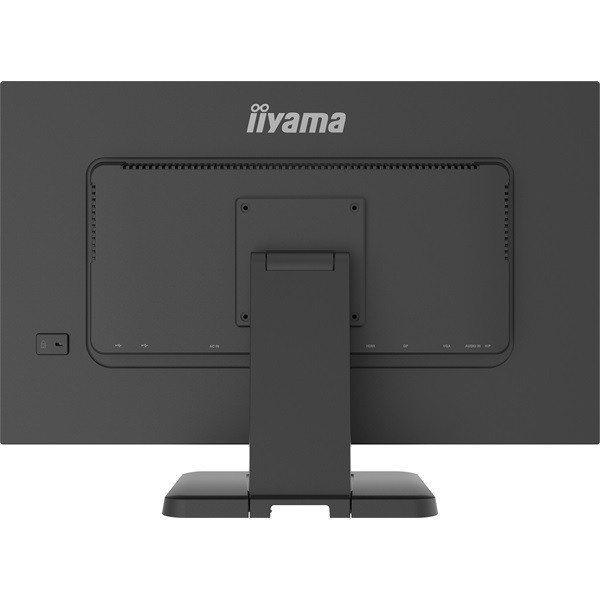

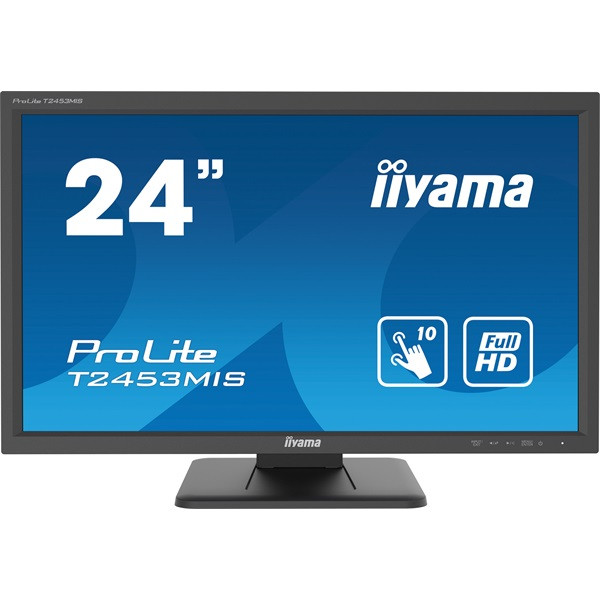

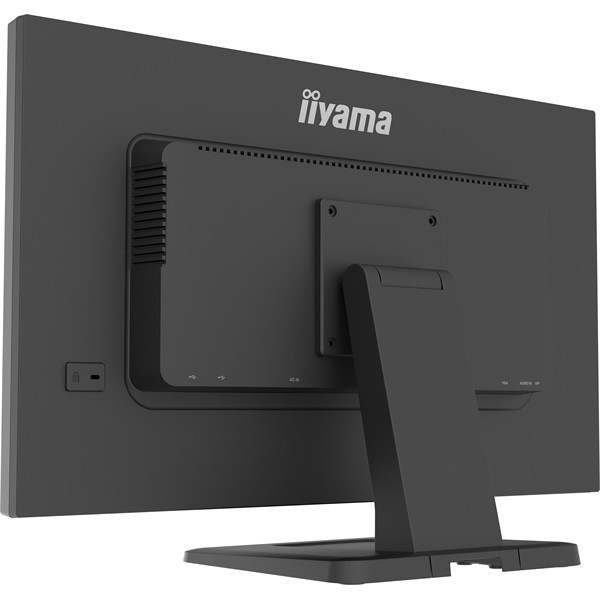

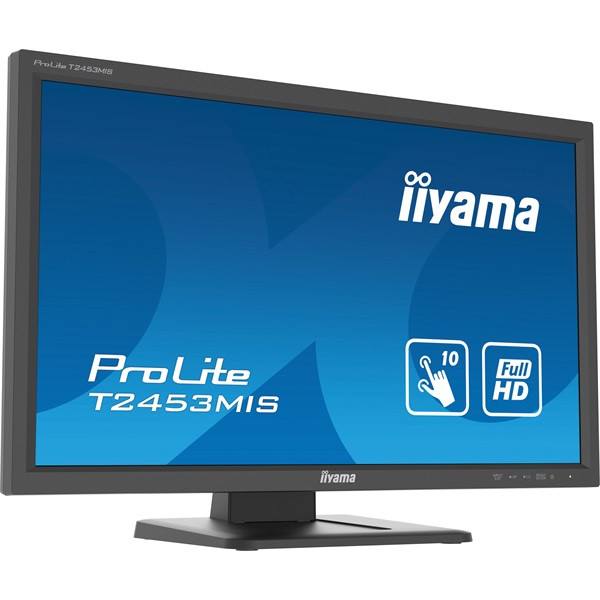

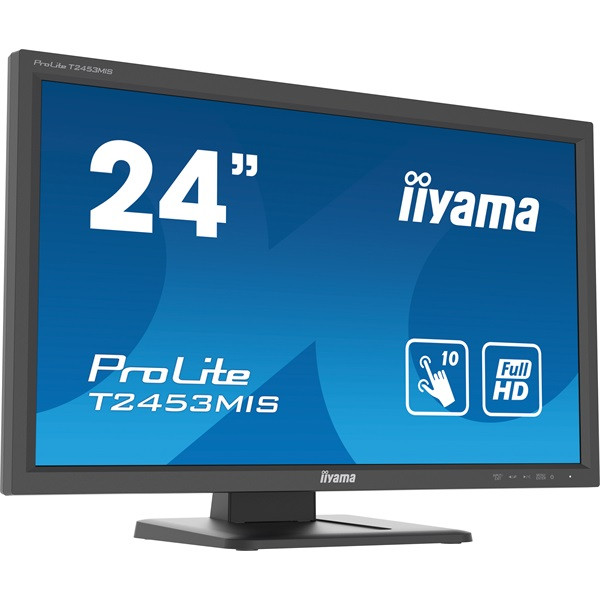

| PROLITE T2453MIS-B1 |
|
| 24" 10 point Touch monitor based on IR Touch technology |
|
| |
|
The ProLite T2453MIS-B1 is based on IR touch technology (10 touch points) with a pure-glass scratch resistive front, offering superior image clarity and screen durability. The screen can be touched with a soft stylus, finger or gloved hand making it suitable for several applications. The VA panel technology guarantees high performance with excellent colour reproduction and high contrast, making it an excellent choice for a vast array of demanding interactive applications. A solid and steady base supports the touchscreen with an adjustable stand. Multiple inputs (VGA, HDMI, DP) are available for flexible connectivity along with USB for the touch interface.
|
| |
| TECHNICAL SPECIFICATION |
|
| |
|
DISPLAY CHARACTERISTICS
|
|
| |
|
Diagonal
|
23.6", 59.8cm
|
Panel
|
VA LED-backlit
|
Native resolution
|
1920 x 1080 (2.1 megapixel Full HD)
|
Aspect ratio
|
16:9
|
Panel brightness
|
250 cd/m²
|
Brightness
|
225 cd/m² with touch
|
Light transmittance
|
90%
|
Static contrast
|
3000:1
|
Advanced contrast
|
12M:1
|
Response time (GTG)
|
4ms
|
Viewing zone
|
horizontal/vertical: 178°/ 178°, right/left: 89°/89°, up/down: 89°/89°
|
Colour support
|
16.7mln
|
Horizontal Sync
|
30 - 80kHz
|
Viewable area W x H
|
521.3 x 293.2mm, 20.5 x 11.5"
|
Pixel pitch
|
0.272mm
|
Bezel colour and finish
|
black, matte
|
| |
|
| |
|
| |
|
TOUCH
|
|
| |
|
Touch technology
|
infrared
|
Touch points
|
10 (HID, only with supported OS)
|
Touch accuracy
|
+- 2mm
|
Touch method
|
stylus, finger, glove
|
Touch interface
|
USB
|
Supported operating systems
|
All Iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
|
| |
|
| |
|
| |
|
INTERFACES / CONNECTORS / CONTROLS
|
|
| |
|
Analog signal input
|
VGA x1
|
| Digital signal input |
HDMI x1 |
.
|
DisplayPort x1
|
| Audio output |
Mini jack x1 |
.
|
Speakers 2 x 2W
|
HDCP
|
yes
|
USB HUB
|
x2 (3.0)
|
| |
|
| |
|
| |
|
FEATURES
|
|
| |
|
Glass thickness
|
1.85mm
|
Glass hardness
|
7H
|
OSD key lock
|
yes
|
| |
|
| |
|
| |
|
GENERAL
|
|
| |
|
OSD languages
|
EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL
|
Control buttons
|
Power, Menu/ Enter, Scroll up/ Audio, Scroll down/ ECO, Input/ Exit
|
User controls
|
auto adjust, picture adjust (brightness, contrast, ECO, Blue Light Reducer, ACR, OD, gamma, X-res technology), geometry (H. position, V. position, pixel clock, phase), colour settings (colour temperature, user preset, hue, saturation, i-Style colour), OSD (OSD H. position, OSD V. position, OSD time, after AC cut), language, recall, miscellaneous (sharp and soft, video mode adjust, opening logo, DDC/CI, display information), input source, audio settings (volume, mute audio, audio input)
|
Convenience
|
Kensington-lock™ prepared
|
Blue light reducer
|
yes
|
Plug&Play
|
DDC/CI, DDC2B
|
| |
|
| |
|
| |
|
MECHANICAL
|
|
| |
|
Tilt angle
|
95° up; 25° down
|
VESA mounting
|
100 x 100mm
|
| |
|
| |
|
| |
|
ACCESSORIES INCLUDED
|
|
| |
|
Cables
|
power, USB, HDMI
|
Guides
|
quick start guide, safety guide
|
| |
|
| |
|
| |
|
POWER MANAGEMENT
|
|
| |
|
Power supply unit
|
internal
|
Power supply
|
AC 100 - 240V, 50/60Hz
|
Power usage
|
18W typical, 0.5W stand by, 0.3W off mode
|
| |
|
| |
|
| |
|
SUSTAINABILITY
|
|
| |
|
Regulations
|
CE, EAC, RoHS support, ErP, WEEE, VCCI, REACH, UKCA
|
Energy efficiency class (Regulation (EU) 2017/1369)
|
D
|
REACH SVHC
|
above 0.1%: Lead, Lead monoxide, Boric acid
|
| |
|
| |
|
| |
|
DIMENSIONS / WEIGHT
|
|
| |
|
Product dimensions W x H x D
|
571 x 391 x 220.5mm
|
Box dimensions W x H x D
|
645 x 190 x 490mm
|
Weight (without box)
|
6kg
|
EAN code
|
4948570118151
|
