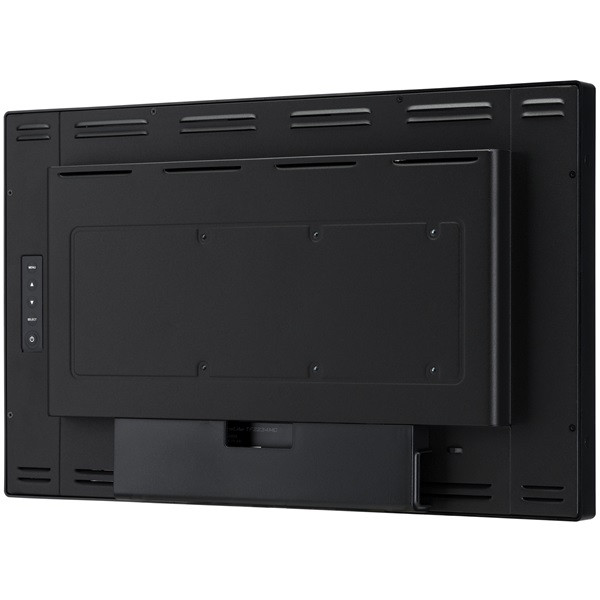

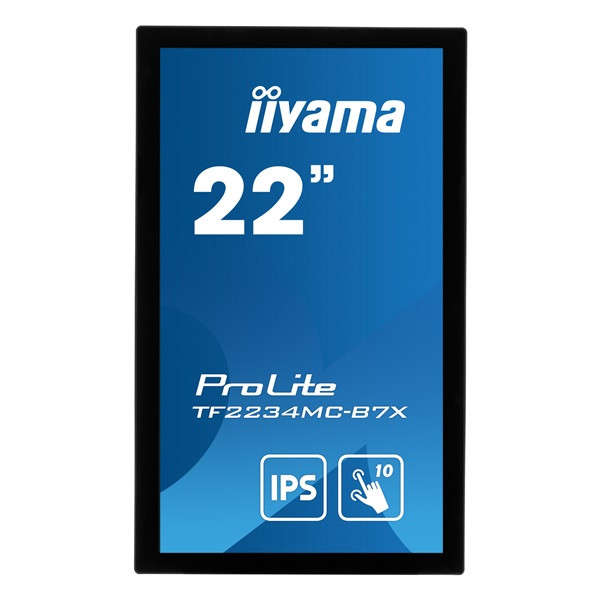

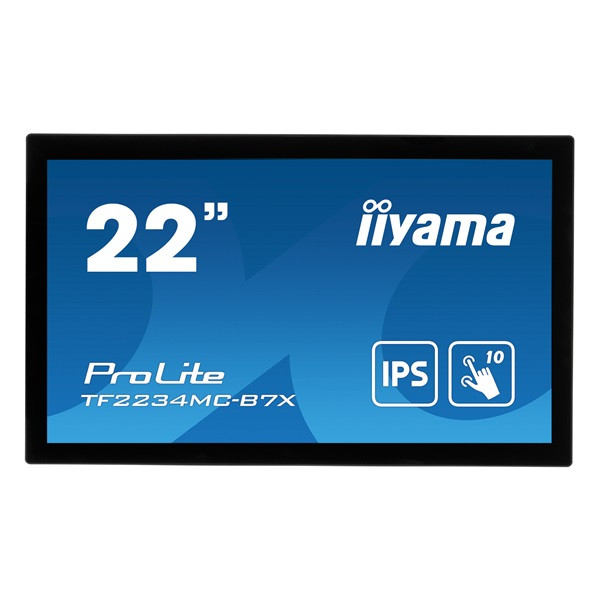

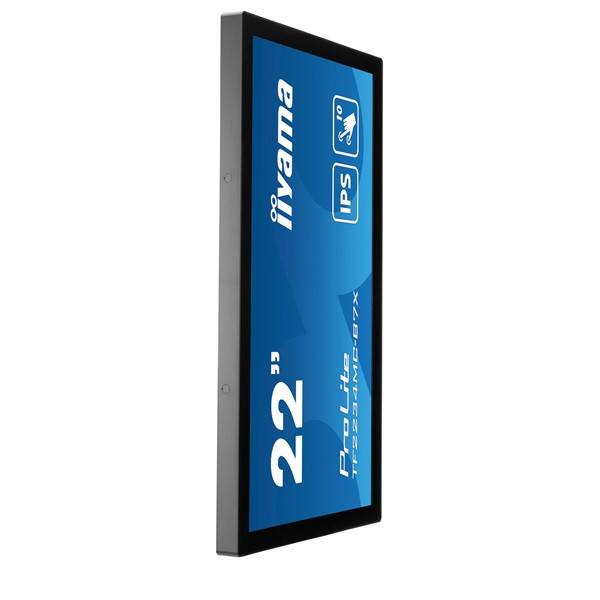

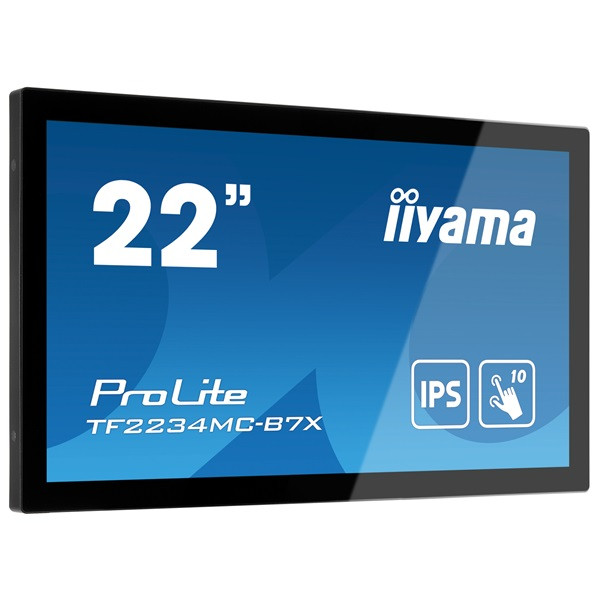

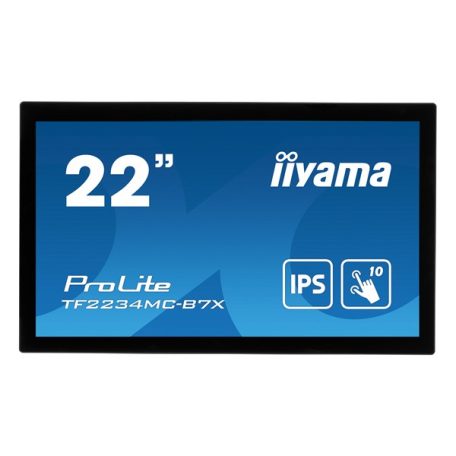

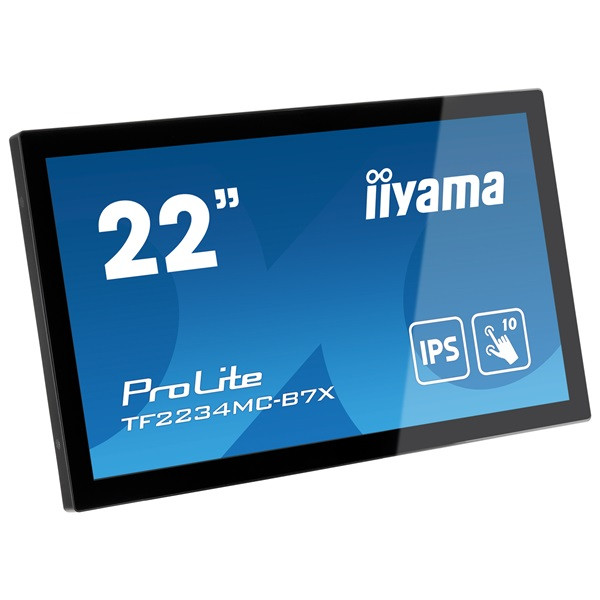

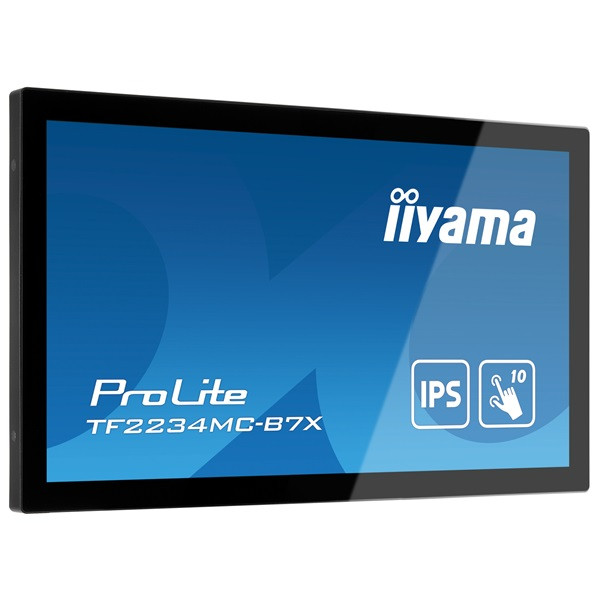

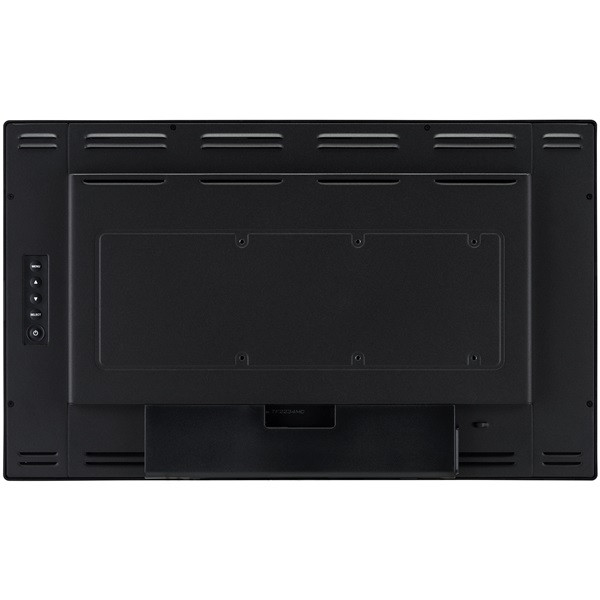

Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC

Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC
Asztali monitor, Iiyama touch monitor, 21,5", 1920x1080, 16:9, 305cd, 8ms, 1000:1,VGA/HDMI/DP, Open frame, TF2234MC

Nem csak webshop, 20 éves tapasztalat.

Garancia :
24 hónap
Natív felbontás :
HD1080 (1920x1080)
Képátló :
21,5"
Kontrasztarány :
1 000 : 1
Kijelző fényerő :
305 cd/m²
Külső készleten :
Nincs raktáron
További adatok
Rendelhető
221 900 Ft
Adatok
Gyártó
Iiyama
Panel típus
IPS
Képarány
16:9
Képfrissítési frekvencia
60 Hz
Válaszidő
8 ms
Láthatósági szög
178° / 178°
Gyártói Cikkszám
TF2234MC-B7X
Tömeg
7 kg/db
Kiterjesztett információk

DISPLAY CHARACTERISTICS



Design Open Frame
Diagonal 21.5", 54.6cm
Panel IPS LED
Native resolution 1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio 16:9
Panel brightness 350 cd/m²
Brightness 305 cd/m² with touch
Light transmittance 87%
Static contrast 1 000:1 with touch
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln
Horizontal Sync 30 - 84kHz
Viewable area W x H 476.0 x 267.7mm, 18.7 x 10.5"
Pixel pitch 0.247mm
Bezel colour and finish black, matte



TOUCH



Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All Iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass 6mm
Palm rejection yes



INTERFACES / CONNECTORS / CONTROLS



Analog signal input VGA x1
Digital signal input HDMI x1

DisplayPort x1
HDCP yes



FEATURES



Extra anti-fingerprint coating, touch through-glass
Glass thickness 1.5mm
Glass hardness 7H
Water and dust protection IP65 (front)



GENERAL



OSD languages EN, DE, FR, ES, IT, RU, JP, CZ, PL
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Plug&Play DDC2B



MECHANICAL



Orientation landscape, portrait, face-up
VESA mounting 100 x 100mm



ACCESSORIES INCLUDED



Cables power, USB, HDMI, DP
Guides quick start guide, safety guide
Other AC adapter
Cable cover yes



POWER MANAGEMENT



Power supply unit external
Power supply DC 12 V
Power usage 18W typical, 1.5W stand by, 0.3W off mode



SUSTAINABILITY



Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369) F
REACH SVHC above 0.1%: Lead



DIMENSIONS / WEIGHT



Product dimensions W x H x D 517.5 x 313.5 x 46mm
Box dimensions W x H x D 610 x 405 x 160mm
Pallet volume 48pcs
Pallet dimensions W x H x D 1090 x 1090 x 1927mm
Weight (without box) 4.4kg
Weight (with box) 6.8kg
EAN code 4948570118366



COMPATIBLE ACCESSORIES



Mounts/stands/brackets OMK1-1



RELATED INFORMATION



Related products RC TOUCHV01, OMK1-1
