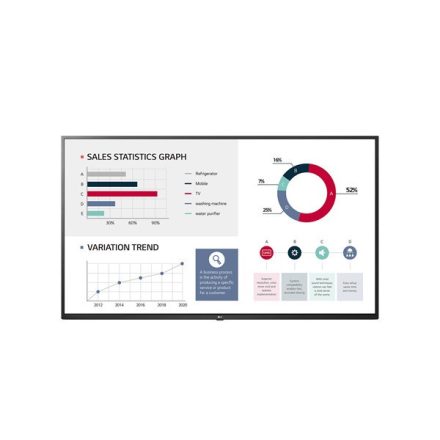

webOS Ultra HD Series
Brightness(Typ.) : 400 cd/m?
Bezel : 15.5 mm (R/L/T), 22.3 mm (B)
Depth : 87.1 mm
Interface : HDMI(3), USB 2.0(2), RS232C In/Out, RJ45 In, Audio Out
Built-in Speaker
OVERVIEW
Clear Color Expression of UHD Content
An Ultra HD large display, the UL3G Series will improve business productivity in any location. All content is delivered in vivid colors and with fine details, giving audiences a clearer viewing experience.
SUPERB PICTURE QUALITY
ULTRA HD Resolution
With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic.
SUPERB PICTURE QUALITY
High Efficiency Video Coding
The UL3G Series supports HEVC* which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic than the existing H.264 codec.
* HEVC : High Efficiency Video Coding
SMART SIGNAGE PLATFORM
High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
SMART SIGNAGE PLATFORM
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.
Smart Signage Platform
Content Sharing
|
Real-time Promotion
|
Wireless Solution
|
Content Mirroring among devices is more convenient on a Wi-Fi network.
|
With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.
|
The UL3G Series operates as a virtual router which can be a wireless access point for mobile devices.
|
OPERATIONAL EFFICIENCY
Compatibility with AV Control System
The UL3G Series has been certified Crestron ConnectedŽ for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
* Network based control
OPERATIONAL EFFICIENCY
Compatibility with Conferencing System
The certification of compatibility between the UL3G Series and Cisco System that offers powerful and integrated control* for video conference is in progress. It will promote the optimal visual meeting by eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
* Using an HDMI cable connection
OPERATIONAL EFFICIENCY
Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UL3G Series displays in different locations in real-time. It is available on internetconnected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
OPERATIONAL EFFICIENCY
Real-time Care Service with LG Signage365Care
The maintenance gets easier and faster with an optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a clients business.
* The availability of Signage365Care" service can differ by region, so please contact the LG sales representative in your region for further details.
| |
|
|
| SPECS |
|
|
| |
|
|
PANEL
|
Screen Size |
Native Resolution |
|
65" |
3,840 x 2,160 (UHD) |
| |
|
|
| |
Brightness (Typ., nit) |
Contrast Ratio |
| |
400 |
1,200:1 |
| |
|
|
| |
Dynamic CR |
Color gamut |
| |
1,000,000 : 1 , The luminosity ratio of Full Black / |
DCI 80 % |
| |
Full White color on video input condition. |
|
| |
|
|
| |
Viewing Angle (H x V) |
Color Depth |
| |
178 x 178 |
1.07 G Colors (8 bit + FRC) |
| |
|
|
| |
Response Time |
Surface Treatment (Haze) |
| |
8 ms (G to G) |
Haze 1% |
| |
|
|
| |
Operation Hours (Hours / Day) |
Portrait / Landscape |
| |
16 / 7 |
Yes / Yes |
| |
|
|
|
|
|
| |
|
|
CONNECTIVITY
|
Input |
Output |
|
HDMI (3, HDCP2.2), USB 2.0 Type A (2) |
Audio |
| |
|
|
| |
External Control |
|
| |
RS232C In / Out (4 Pin Phone Jack), RJ45 (LAN) In |
|
| |
|
|
|
|
|
| |
|
|
MECHANICAL SPECIFICATION
|
Bezel Color |
Bezel Width |
|
Ceramic Black |
15.5 mm (R/L/T) / 22.3 mm (B) |
| |
|
|
| |
Weight (Head) |
Monitor Dimension (W × H × D) |
| |
21.3 kg |
1,463 × 850 × 87.8 mm |
| |
|
|
| |
Monitor Dimensions with Stand (W × H × D) |
Handle |
| |
1,463 × 914 × 269 mm (EU, UK: N/A, stand not provided) |
No |
| |
|
|
| |
VESA Standard Mount Interface |
|
| |
300 x 300 mm |
|
| |
|
|
|
|
|
| |
|
|
ENVIRONMENT CONDITIONS
|
Operation Temperature |
Operation Humidity |
|
0°C to 40°C |
10% to 80% |
| |
|
|
|
|
|
| |
|
|
POWER
|
Power Supply |
Power Type |
|
AC 100-240V~, 50/60Hz |
Built-In Power |
| |
|
|
|
|
|
| |
|
|
POWER CONSUMPTION
|
Typ. / Max. |
BTU (British Thermal Unit) |
|
130 W / 185 W |
BTU 444 BTU/Hr(Typ.), 632 BTU/Hr(Max.) |
| |
|
|
|
|
|
| |
|
|
SOUND
|
Speaker |
|
|
Yes |
|
| |
|
|
|
|
|
| |
|
|
CERTIFICATION
|
Safety |
EMC |
| |
CB |
FCC Class A" / CE / KC |
| |
|
|
| |
ErP |
|
| |
Yes |
|
| |
|
|
|
|
|
| |
|
|
SOFTWARE COMPATIBILITY
|
SuperSign CMS |
SuperSign Control / Control+ |
|
Yes |
Yes |
| |
|
|
| |
SuperSign WB |
SuperSign Media Editor |
| |
Yes |
Yes |
| |
|
|
| |
Signage365Care |
|
| |
Yes (The availability can differ by region.) |
|
| |
|
|
|
|
|
| |
|
|
ACCESSORY
|
Basic |
|
|
Remote Controller, Power Cord, Regulation Book, |
|
| |
Phone to D-Sub9 Gender, Stand (EU, UK: not provided), |
|
| |
Cable Holder |
|
| |
|
|
|
|
|
| |
|
|
GENERAL
|
Region |
|
| |
Global |
|
