Picture/Display |
|
|
|
Delta E
|
< 2 (sRGB)
|
SmartUniformity
|
93 ~ 105%
|
Adaptive sync
|
Yes
|
Maximum resolution
|
2560 x 1440 @ 75 Hz*
|
EasyRead
|
Yes
|
Colour gamut (typical)
|
NTSC 106%*, sRGB 118%*, Adobe RGB 87%*
|
Brightness
|
350
|
Aspect ratio
|
16:9
|
Display Screen Coating
|
Anti-Glare, 3H, Haze 25%
|
Effective viewing area
|
698.112 (H) x 392.688 (V)
|
Panel Size
|
31.5 inch/80 cm
|
Backlight type
|
W-LED system
|
LCD panel type
|
IPS technology
|
SmartContrast
|
50,000,000:1
|
Contrast ratio (typical)
|
1000:1
|
Pixel pitch
|
0.2727 x 0.2727 mm
|
LowBlue Mode
|
Yes
|
Flicker-free
|
Yes
|
Pixel Density
|
93 PPI
|
Response time (typical)
|
4 ms (Grey to Grey)*
|
Picture enhancement
|
SmartImage
|
sRGB
|
Yes
|
Scanning Frequency
|
30–114 kHz (H)/48–75 Hz (V)
|
Display colours
|
Colour support 1.07 billion colours
|
Viewing angle
|
178º (H)/178º (V), @ C/R > 10
|
|
|
|
|
|
|
Connectivity
|
|
|
|
HBR3
|
for USB-C
|
Signal Output
|
DisplayPort out x 1
|
USB:
|
USB-C x 1 (upstream), USB 3.2 x 4 (downstream with 1 fast charge B.C 1.2)
|
HDCP
|
HDCP 2.2 (HDMI/DP/USB-C)
|
RJ45
|
Ethernet LAN up to 1 G*, Wake on LAN
|
Signal Input
|
DisplayPort 1.4 x 1, HDMI 1.4 x 2, USB-C 3.2 Gen 1 x 1 (upstream, power delivery up to 90 W)
|
Audio (In/Out)
|
Audio out
|
Sync Input
|
Separate Sync
|
|
|
|
|
|
|
Convenience
|
|
|
|
Built-in Speakers
|
5 W x 2
|
Built-in webcam
|
2.0 megapixel FHD camera with microphone and LED indicator (for Windows 10 Hello)
|
Control software
|
SmartControl
|
Plug and Play Compatibility
|
DDC/CI, Mac OS X, sRGB, Windows 10 / 8.1 / 8 / 7
|
Other convenience
|
Kensington lock, VESA mount (100 x 100 mm)
|
OSD Languages
|
Brazil Portuguese, Czech, Dutch, English, French, Finnish, German, Greek, Hungarian, Italian, Japanese, Korean, Portuguese, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian
|
User convenience
|
SmartImage, Input, User, Menu, Power On/Off
|
|
|
|
|
|
|

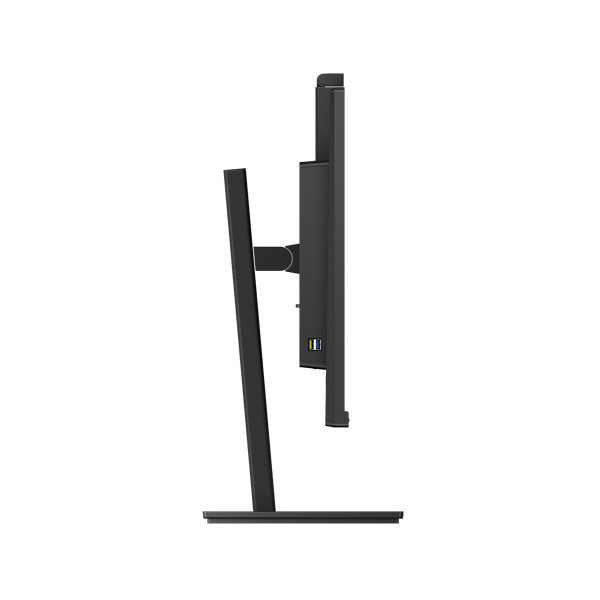

Stand
|
|
|
|
Height adjustment
|
180
|
Tilt
|
-5~25
|
Pivot
|
-/+ 90 degree
|
Swivel
|
-/+ 180
|
|
|
|
|
|
|
Power
|
|
|
|
On mode
|
25.3 W (typ.) (EnergyStar test method)
|
Standby mode
|
0.3 W
|
Off mode
|
Zero watts with Zero switch
|
Power LED indicator
|
Operation - White, Standby mode - White (flashing)
|
Power supply
|
Built-in, 100–240 VAC, 50–60 Hz
|
ECO mode
|
24 W (typ.)
|
Energy Label Class
|
G
|
|
|
|
|
|
|
Dimensions
|
|
|
|
Product with stand (max height)
|
714 x 649 x 280
|
Product without stand (mm)
|
714 x 422 x 62
|
Packaging in mm (W x H x D)
|
930 x 563 x 186
|
|
|
|
|
|
|
Weight
|
|
|
|
Product with stand (kg)
|
12.22
|
Product without stand (kg)
|
8.21
|
Product with packaging (kg)
|
15.53
|
|
|
|
|
|
|
Operating conditions
|
|
|
|
Temperature range (operation)
|
0°C to 40°C
|
Temperature range (storage)
|
-20°C to 60°C
|
Relative humidity
|
20%-80
|
Altitude
|
Operation: +12,000 ft (3658 m), Non-operation: +40,000 ft (12,192 m)
|
MTBF (demonstrated)
|
70,000 hrs (excluded backlight)
|
|
|
|
|
|
|
Sustainability
|
|
|
|
Environmental and energy
|
PowerSensor, LightSensor, EnergyStar 8.0, EPEAT*, TCO Certified Edge, RoHS
|
Recyclable packaging material
|
100
|
Specific Substances
|
Mercury free, PVC/BFR free housing
|
Post-consumer recycled plastic
|
85%
|
|
|
|
|
|
|
Compliance and standards
|
|
|
|
Regulatory Approvals
|
EPA, CB, TUV/GS, TUV Ergo, SEMKO, CU-EAC, EAEU RoHS, CCC, CEL, CECP, CE Mark, FCC Class B, ICES-003, TUV Eye Comfort certified
|
|
|
|
|
|
|
Cabinet
|
|
|
|
Front bezel
|
Black
|
Finish
|
Texture
|
Rear cover
|
Black
|
Foot
|
Black
|
|
|
|
|
|
|
What's in the box?
|
|
|
|
Cables
|
HDMI cable, DP cable, USB-C to C/A Y cable, Power cable
|
Monitor with stand
|
Yes
|
User Documentation
|
Yes
|
|
|
|
|
|
|
USB
|
|
|
|
USB-C
|
Reversible plug connector
|
Power delivery
|
USB PD version 3.0
|
USB-C max. power delivery
|
Up to 90 W (5 V/3 A, 7 V/3 A, 9 V/3 A, 10 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/4.5 A)
|
Super speed
|
Data and Video transfer
|
DP
|
Built-in Display Port Alt mode
|
|
|
|
|
|
|
General
|
|
|
|
Model name
|
326P1H
|
EAN
|
8712581768096
|
