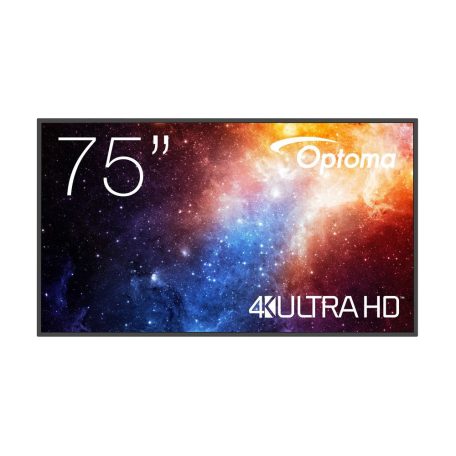

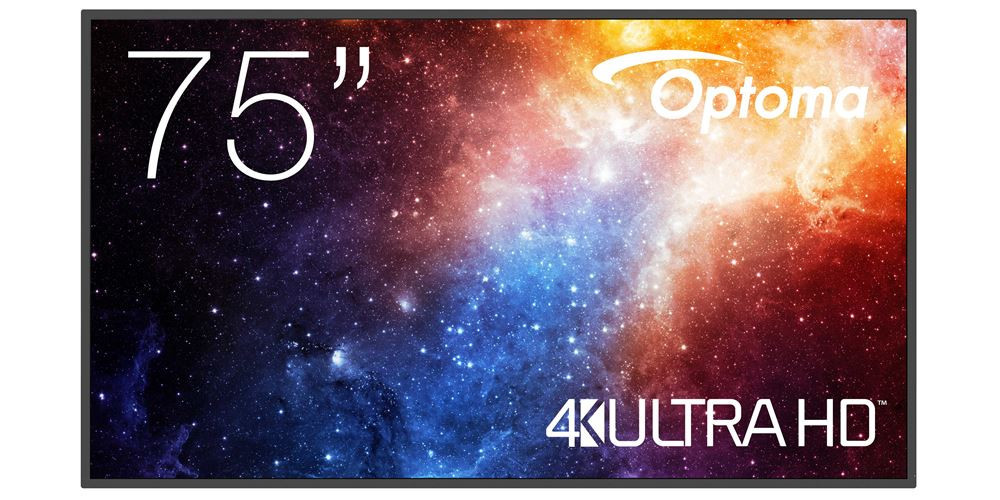

N-Series Professional Displays
The N-Series Professional Displays are designed to enhance the current conferencing setups of corporate and education settings to accommodate hybrid work and distance-learning scenarios. Intuitive friendly software enables users to connect, present and collaborate globally, both in-person and remotely.
Featuring portrait and landscape orientation, the N-Series are built for usage in corporate lobbies and reception areas, conference rooms, lecture halls, digital signage and other professional environments.
Engineered for simplified connectivity and heightened engagement, content can be shared wirelessly with Creative Cast™, along with live content viewing and real time collaboration with Optoma’s interactive flat panel displays via Creative Board. With a built-in media player, users can display information, create, and customise their own playlist.
Additionally, users can also upload files wirelessly and access the cloud on popular systems such as Google, Microsoft, and Dropbox through Optoma’s File Manager.
Display
| Back light |
Direct type LED
|
| Size (diagonal) |
75"
|
| Resolution |
3840x2160
|
| Brightness |
450
|
| Contrast ratio |
1,200:1
|
| Contrast ratio (dynamic) |
3,000:1
|
| Viewing angle |
178°
|
| Response time |
8ms
|
| Life |
50,000 hours
|
| Display colours |
1,070
|
| Speaker count |
2
|
| Watts per speaker |
10W
|
| Surface hardness |
3H
|
| Glass |
HAZE: 25%
|
Physical spec
| Dimensions (W x D x H) mm |
1685.6 x 81.6 x 963.7
|
| Wall-hanging screw spec |
M8*25mm
|
| VESA holes |
800x600
|
| In the box |
European Standard Power Cord
American Standard Power Cord
British Standard Power Cord
HDMI Cable 3m
Remote Control
Battery
QSG
|
| Connections |
| Inputs 1 x USB-C, 3 x HDMI 2.0, 1 x USB 2.0, 1 x USB 3.0, 2 x RJ45, 1 x OPS slot |
| Outputs 1 x Audio 3.5mm, 1 x HDMI 2.0, 1 x S/PDIF |
| Control 1 x RS232 |
|
| Bezel size (top) |
15.90mm
|
| Bezel size (bottom) |
15.90mm
|
| Bezel size (left) |
15.90mm
|
| Bezel size (right) |
15.90mm
|
| Operating conditions |
24/7
|
| Operating temperature (max) |
40°C
|
| 24/7 operation |
Yes
|
| Net weight |
34 kg
|
| Gross weight |
48 kg
|
| Wireless - operating frequency |
2.4G/5G
|
Power
| Power supply |
100-240V~ 50/60Hz
|
| Power consumption (standby) |
0.5W
|
| Power consumption (max) |
425W
|
| Power consumption - average (watts) |
235
|
Operation System
| System version |
Android 11
|
| CPU |
Quad A55
|
| GPU |
Mali G51
|
| RAM |
4GB
|
| Storage |
32GB
|
| OSD / display languages |
17 languages: Arabic, Czech, Danish, Dutch, English, French, German, Italian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish
|
| Desktop software |
Optoma Management Suite (OMS), Creative Board, File manager, Media player
|
